Velocity

ADDITIONAL INFO

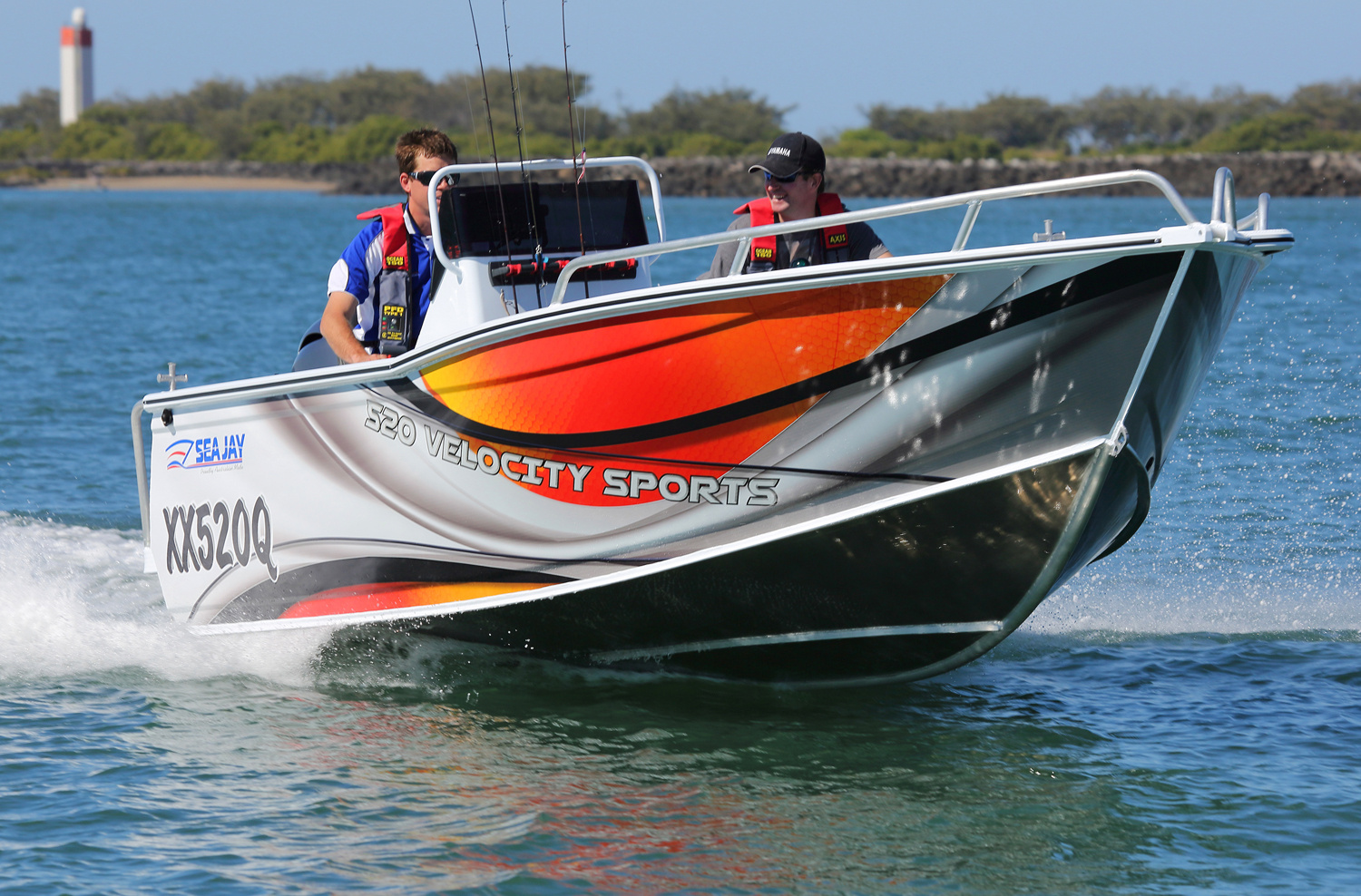

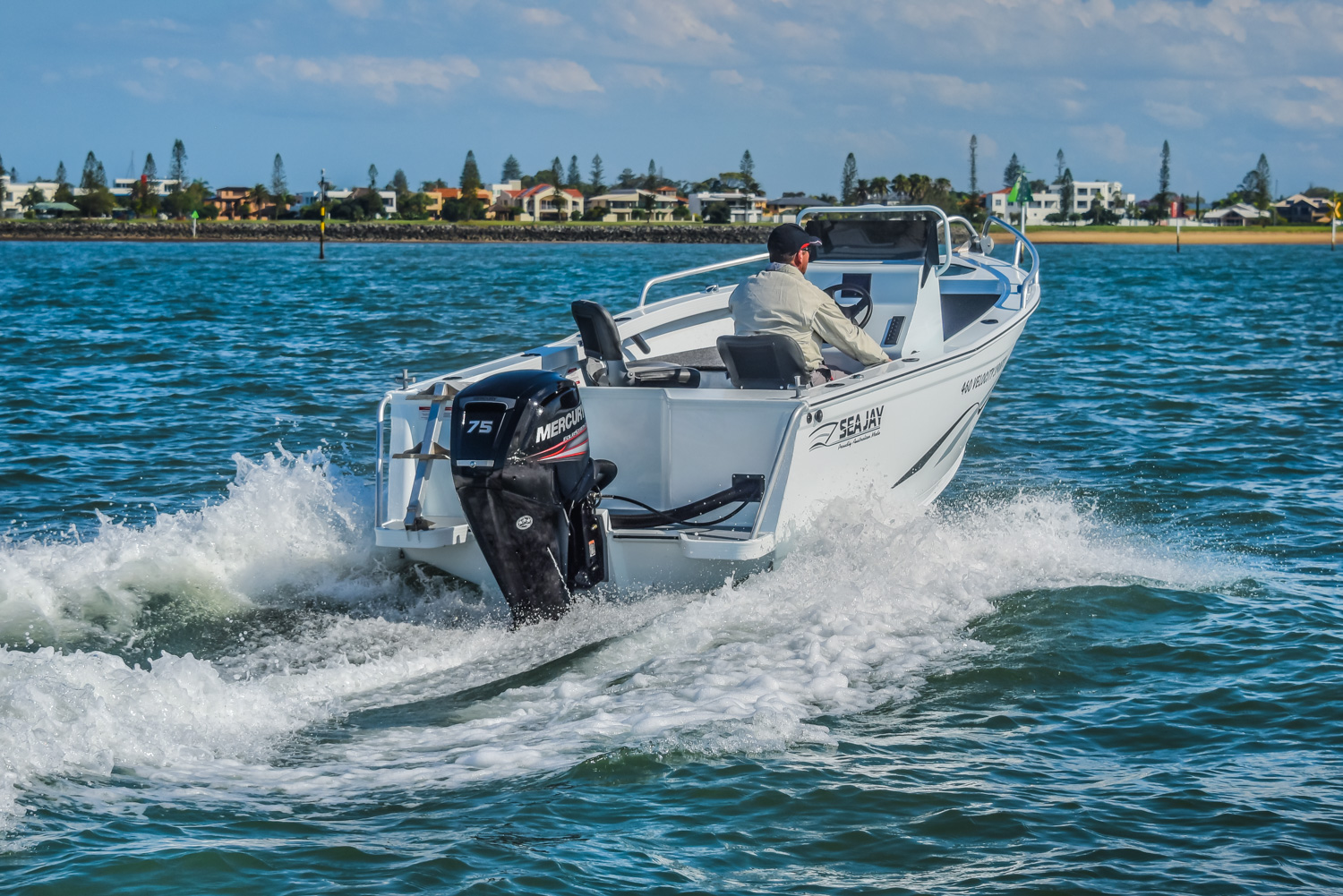

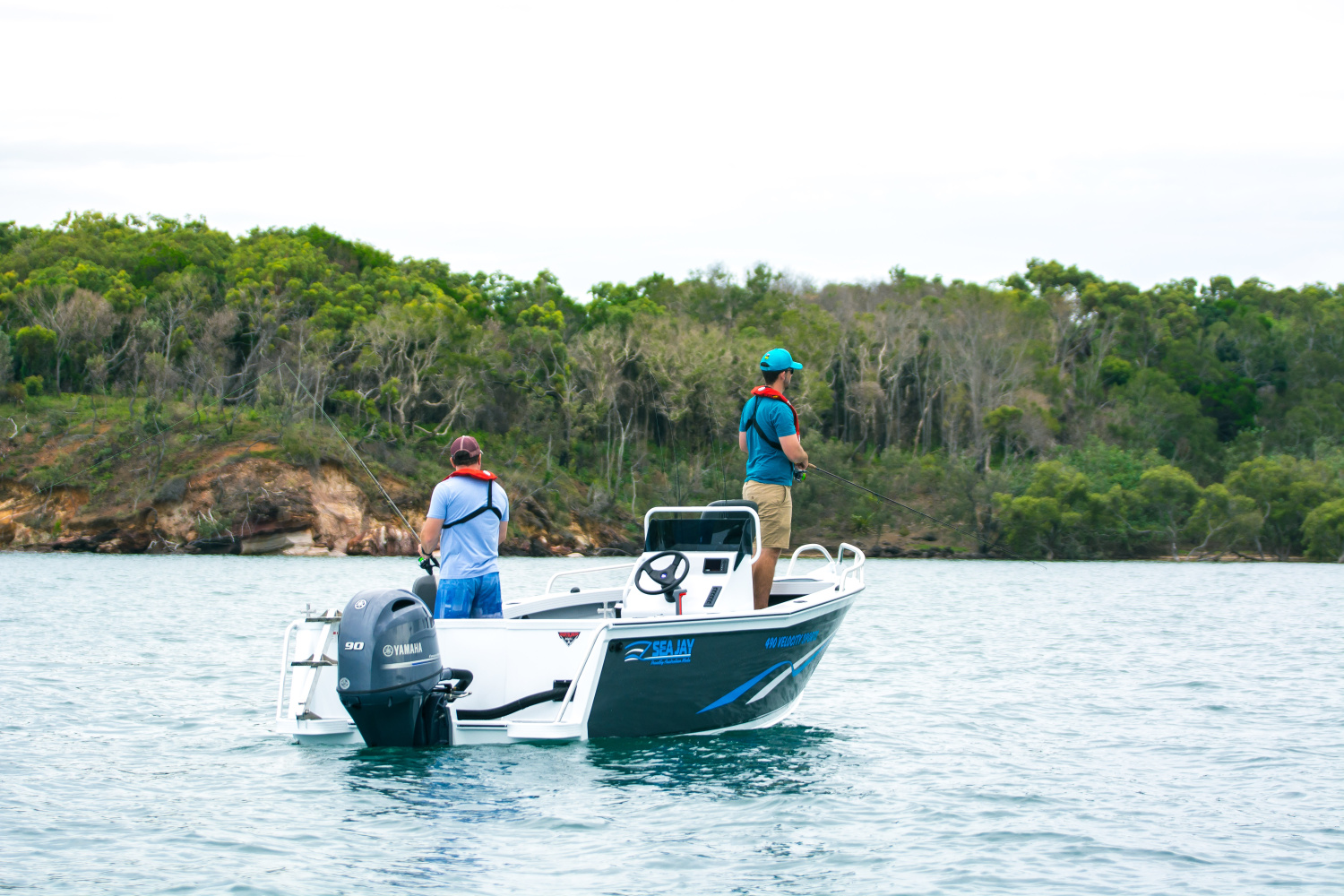

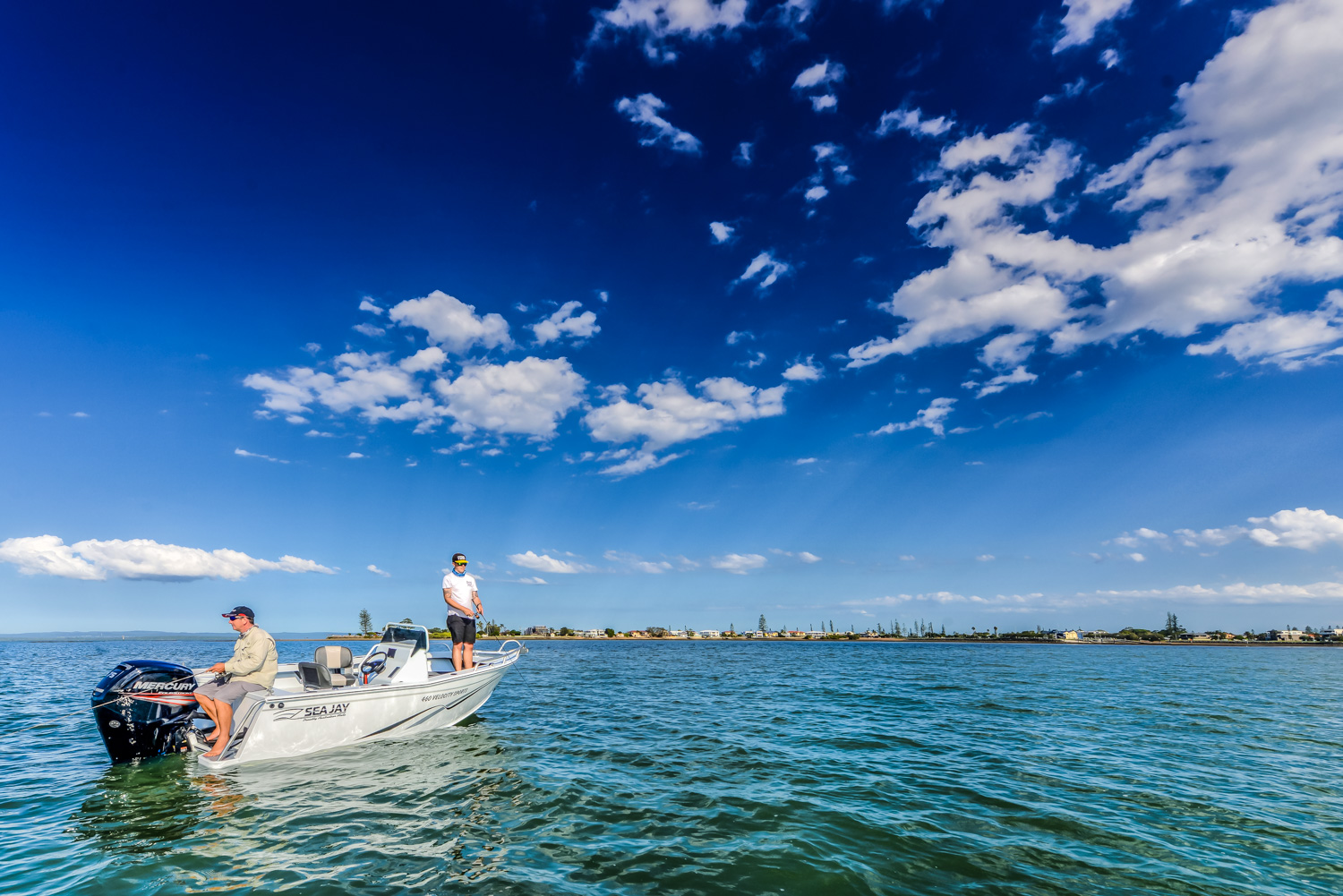

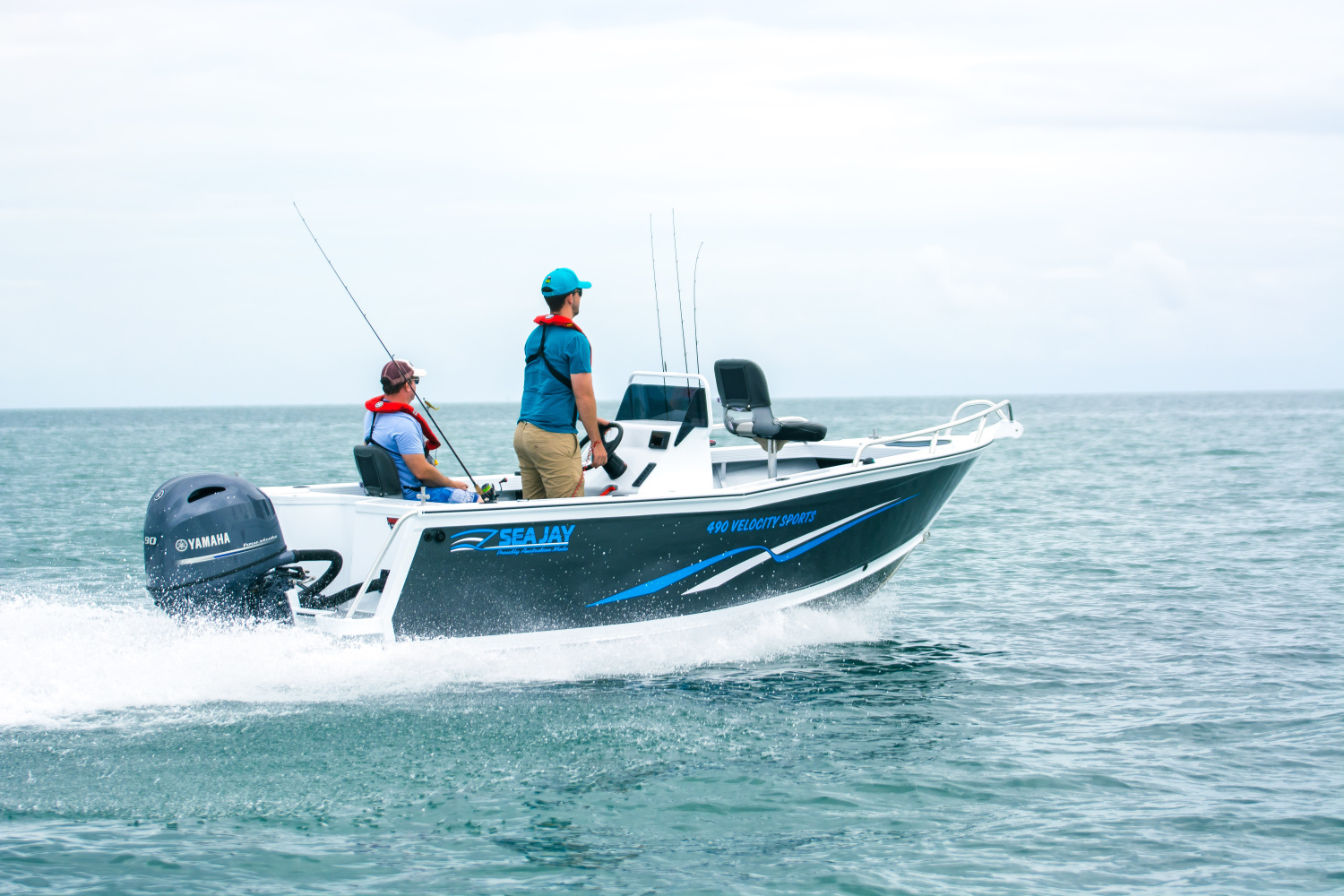

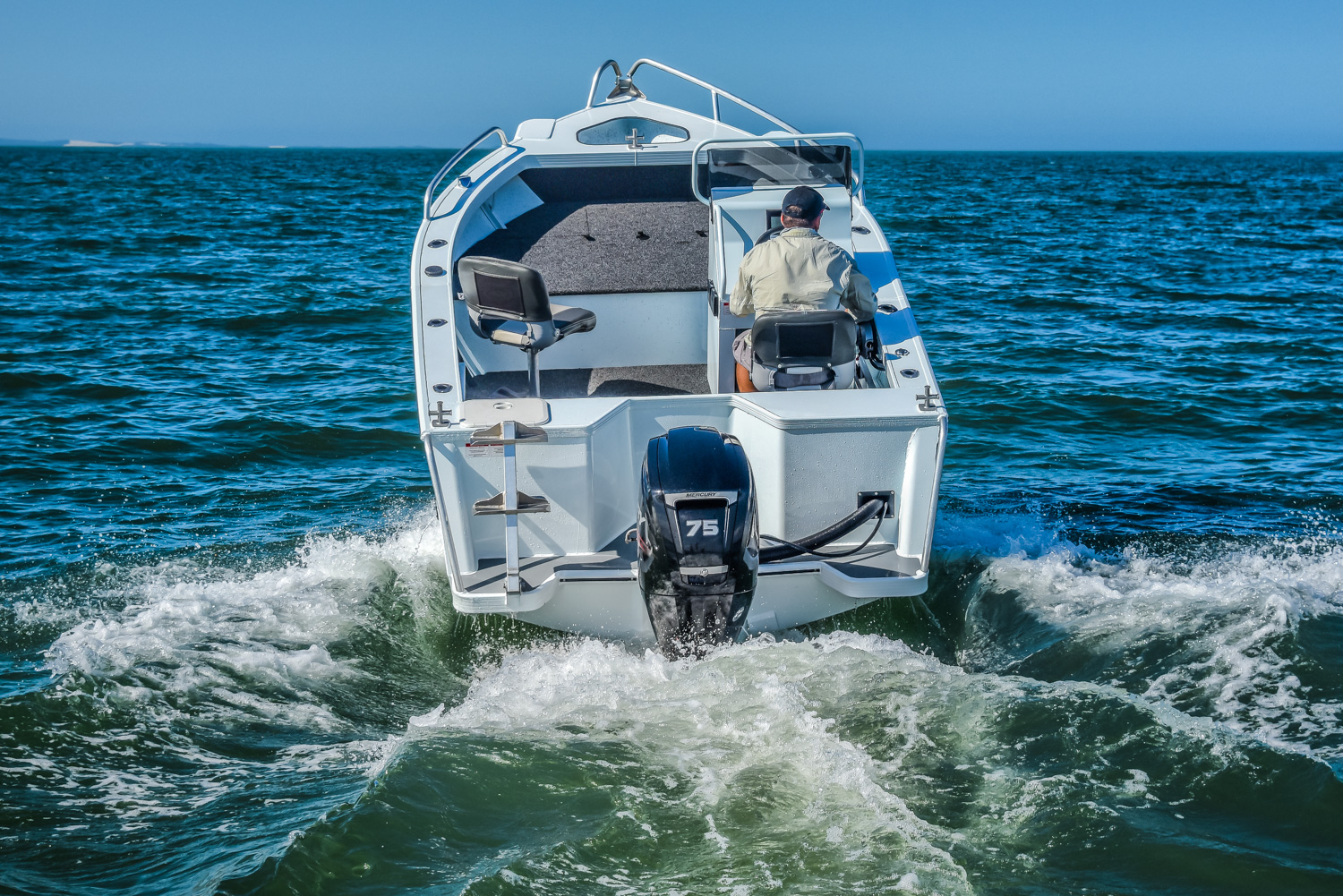

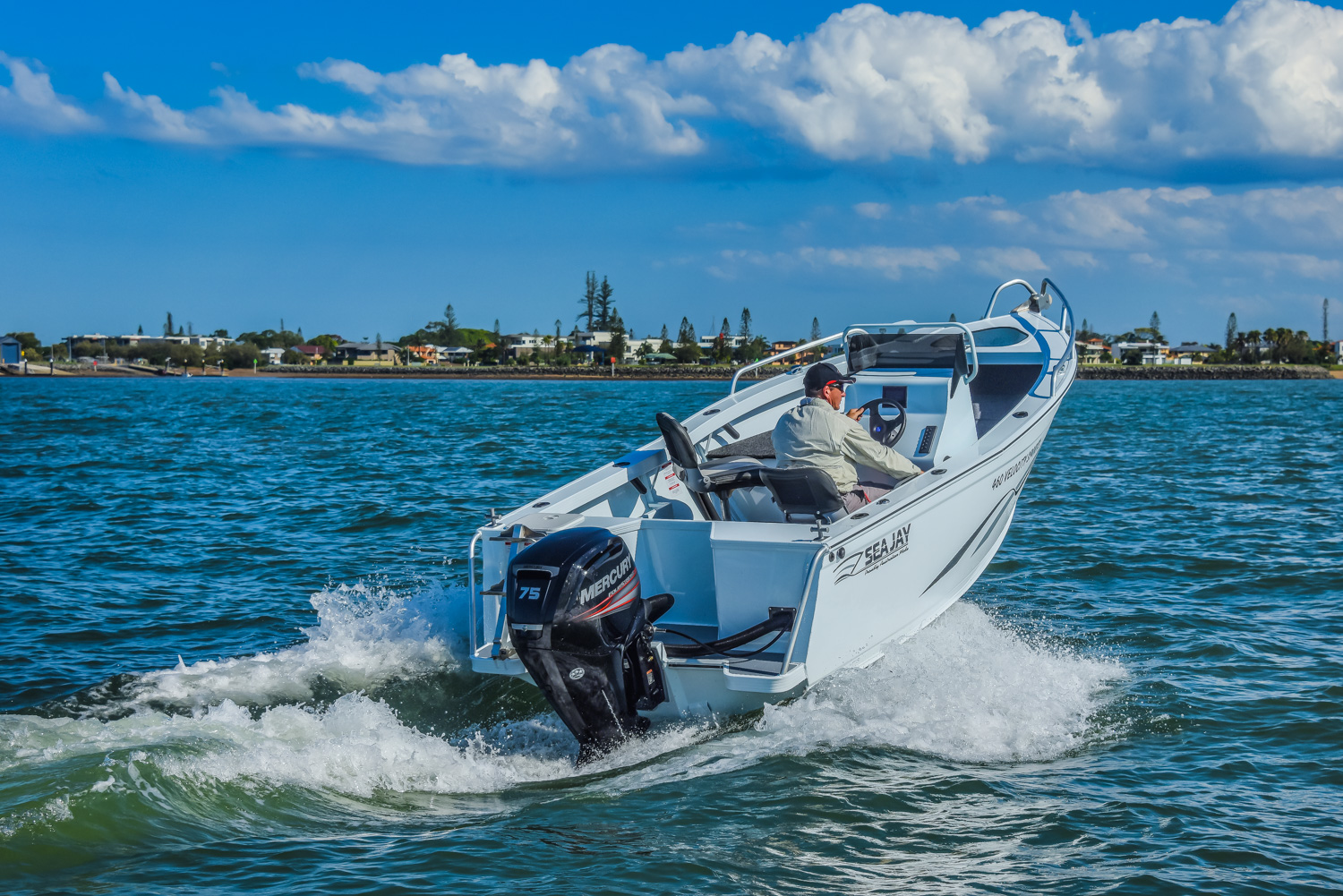

The VELOCITY is another model in the SAMURAI HULL line up, with the sleek raised sheer line (swept bow) and reverse chine, this model has all the best qualities Sea Jay is known for. Having 5083 plate bottom, with 50mm capped keel this model proved itself during testing, with increased dead rise and sharper entry this model simply slices through the waves, parting the water like no other.  The Velocity has a larger high front cast deck with an abundance of storage within the hatch.

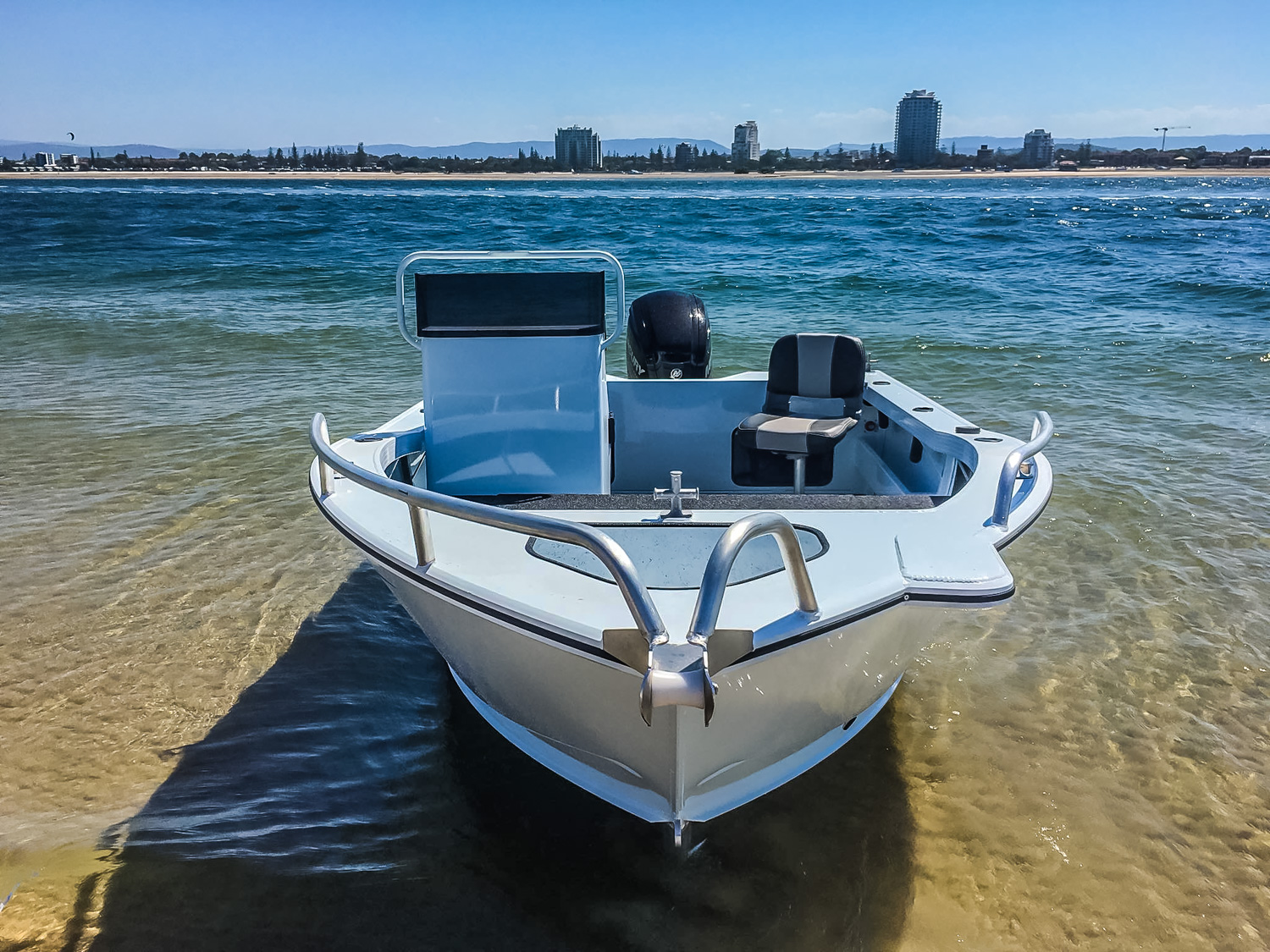

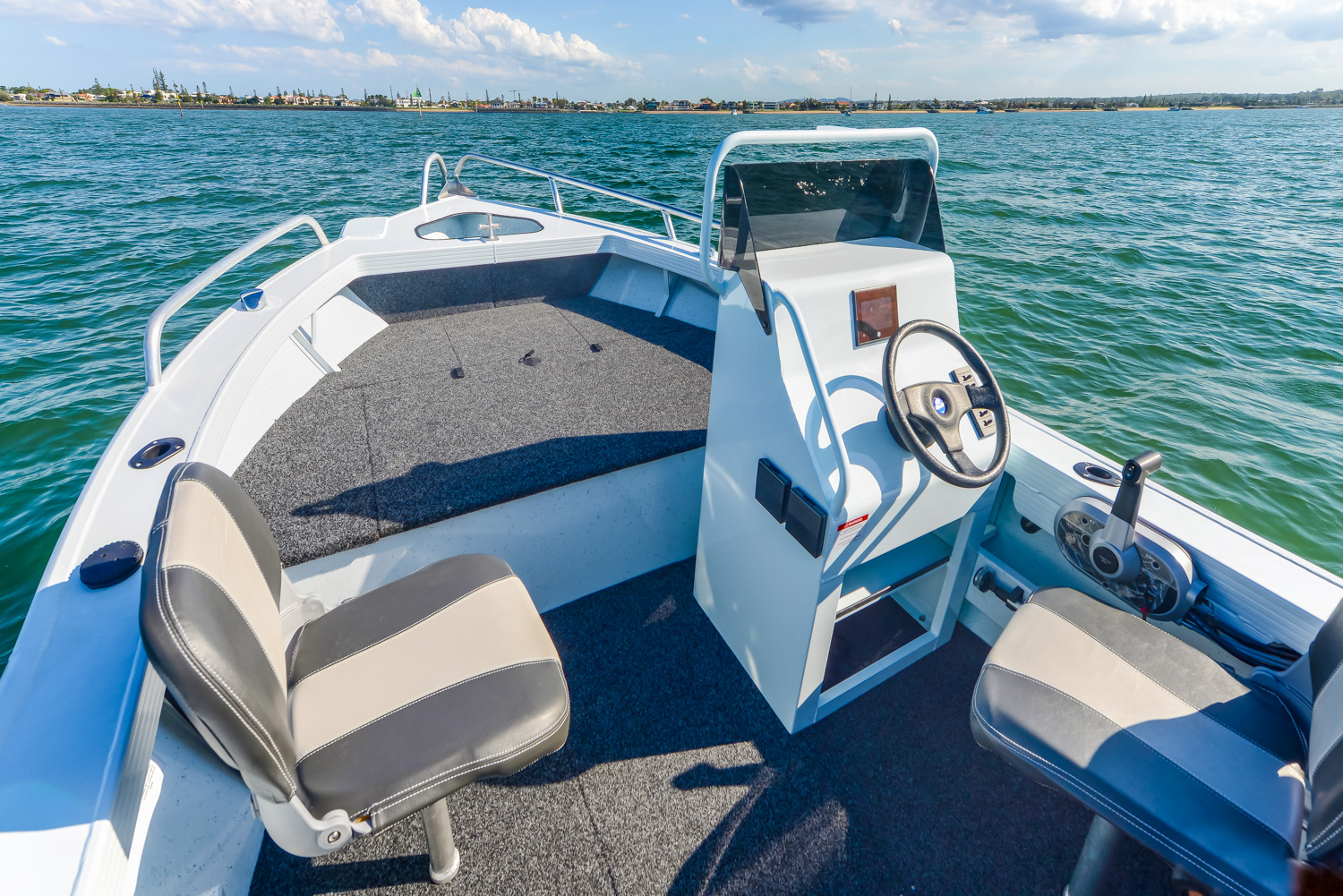

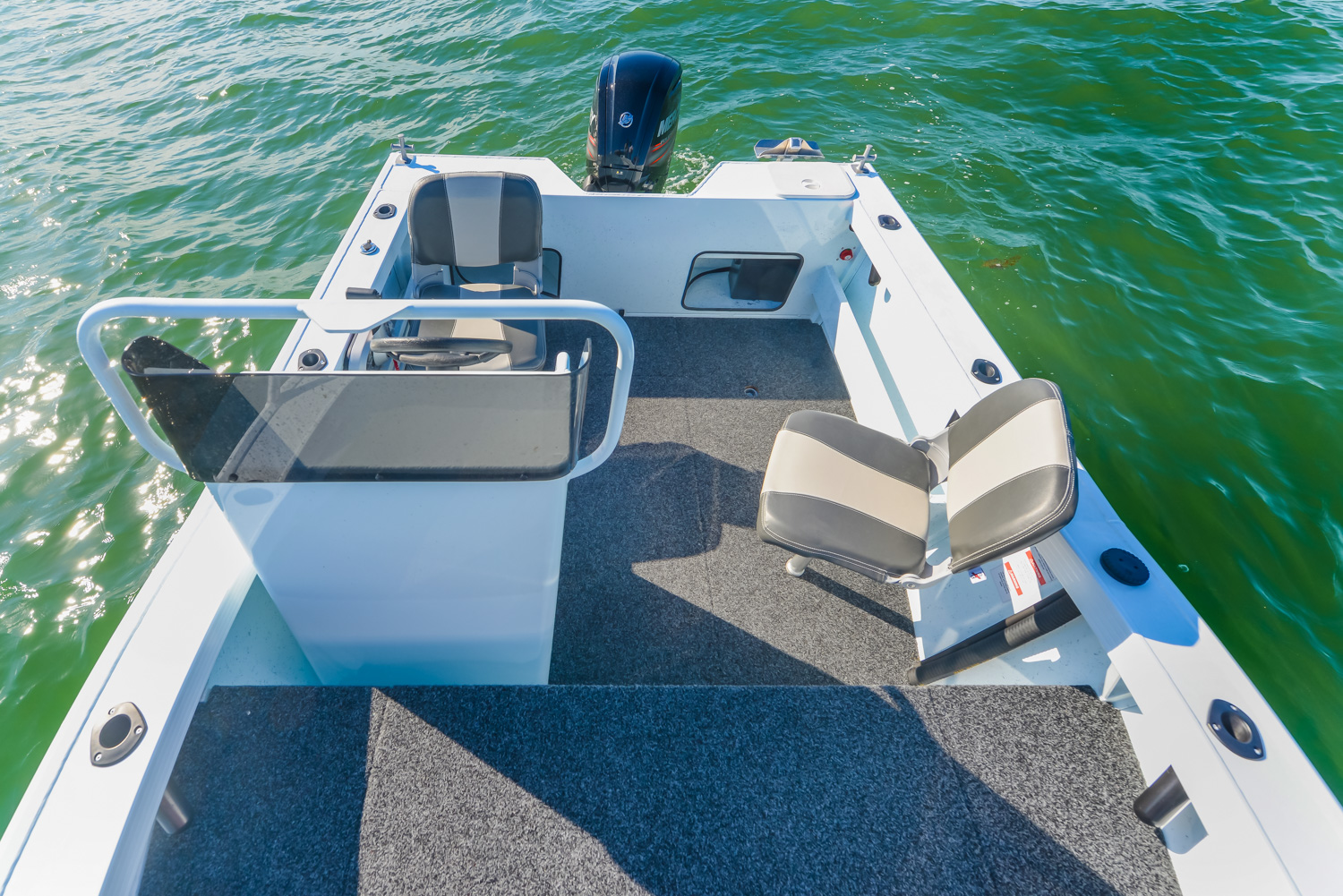

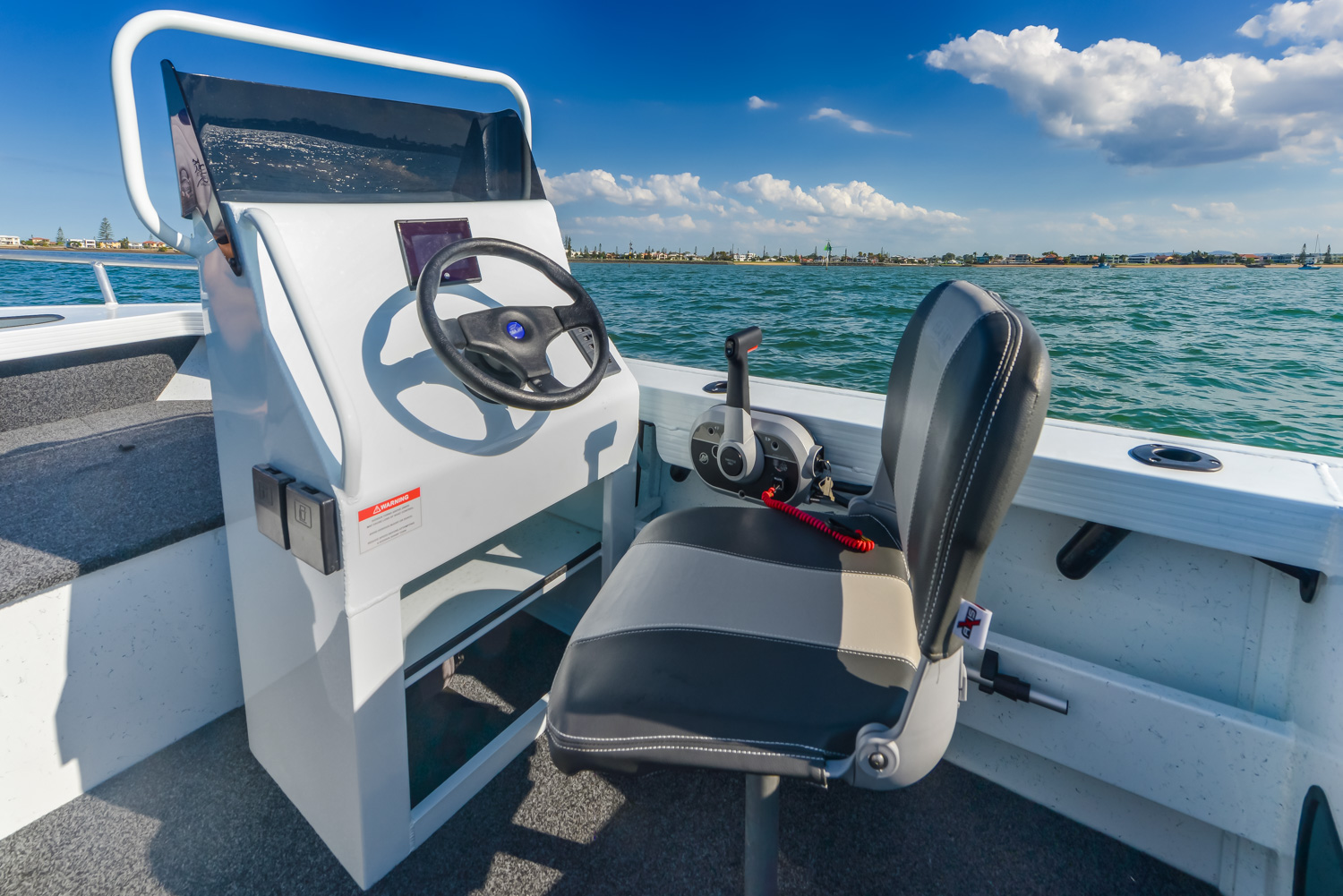

The Velocity has two options with regard to the positioning of the sports console, these being a Side Console or Centre Console with the console positioned towards the rear.
Available in several lengths, it is certainly a model to look at and take on board the full features as noted.

Contact you nearest Sea Jay Dealer for pricing and options.

 Specifications  490  520  550  590
Bottoms (mm) – all 5083 grade high tensile
plate
4.0 4.0 4.0 4.0
Sides (mm) 3.0 3.0 3.0 3.0
Beam (m) 2.3 2.4 2.45 2.47
Depth (m) 1.25 1.29 1.30 1.36
depth (m) including windscreen 1.64 1.68 1.70 1.70
Floor ribs 12 13 14 15
Maximum no. of persons 5 5 6 6
Weight approx (kg) 555 575 660 TBA
Recommended hp 70 90 100 115
Maximum hp 90 115 150 150
Maximum motor weight (kg) 175 195 230 230
Overall length (m) 5.04 5.30 5.60 6.00
 FEATURES  490  520  550  590
Samurai Hull
Anchor well

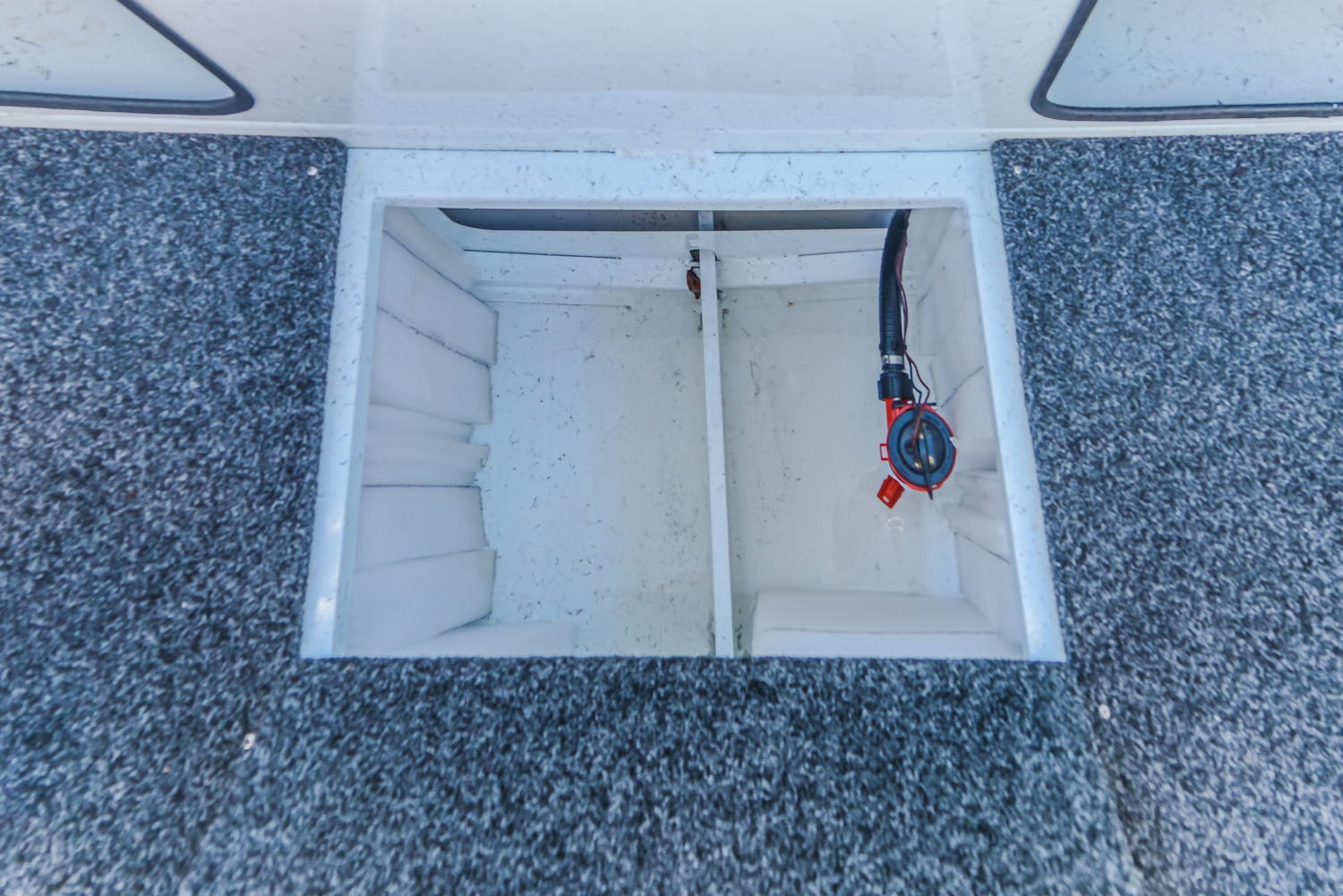

Bait tank plumbed – alloy
Battery & oil rack in stern
Boarding ladder – heavy duty
Low floor under front cast
Bollard x 3
Bow spirit & roller
Bungs 38mm 2 2 2 2
Capped Keel 50mm  ✓  ✓  ✓  ✓
Console – Side or Centre (includes screen/shelf)
Dive door
Drink holder 2 2 2 2
Electric motor plate – extended off gunwhale
Ice box storage under front cast deck
Tackle storage box holders in front cast

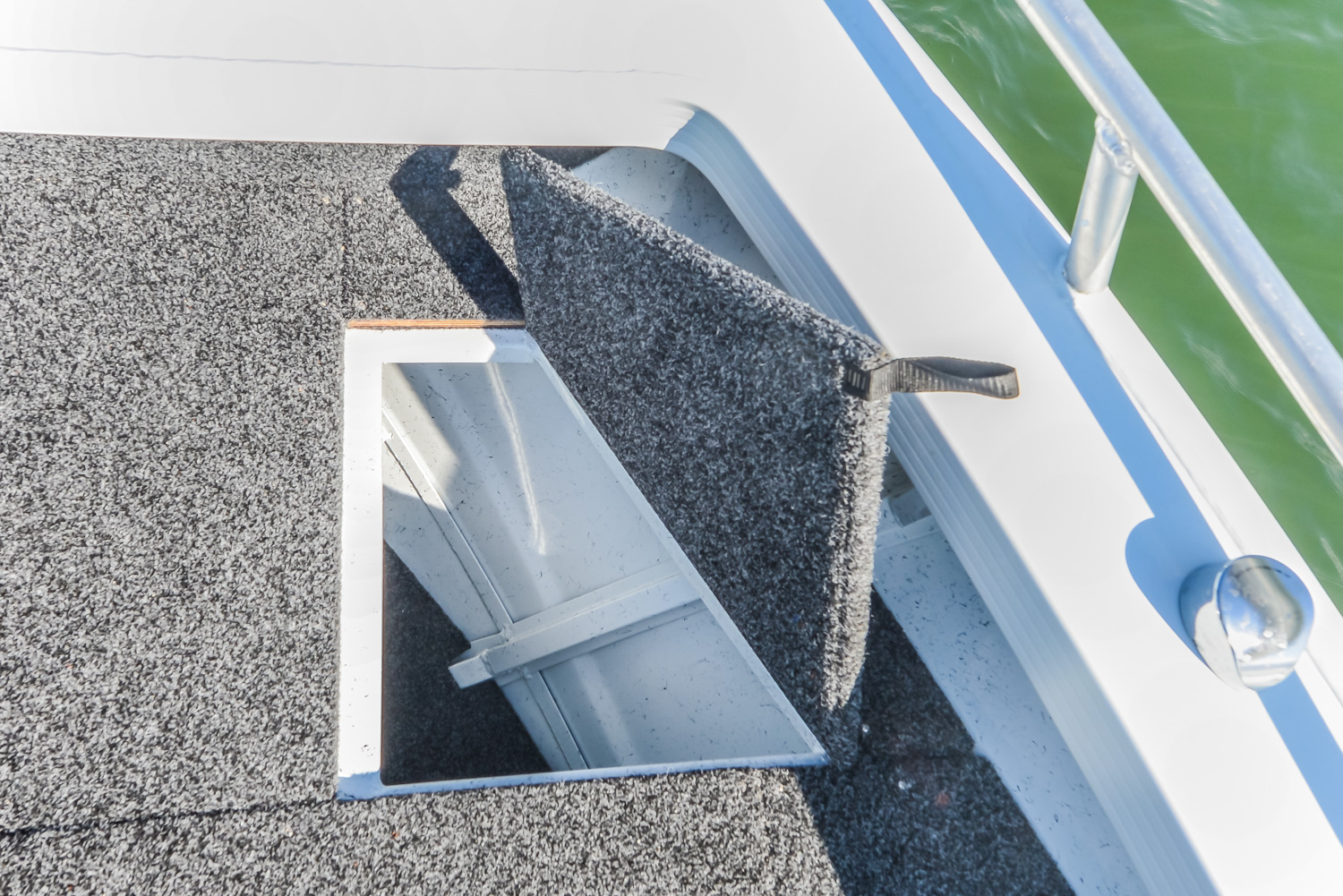

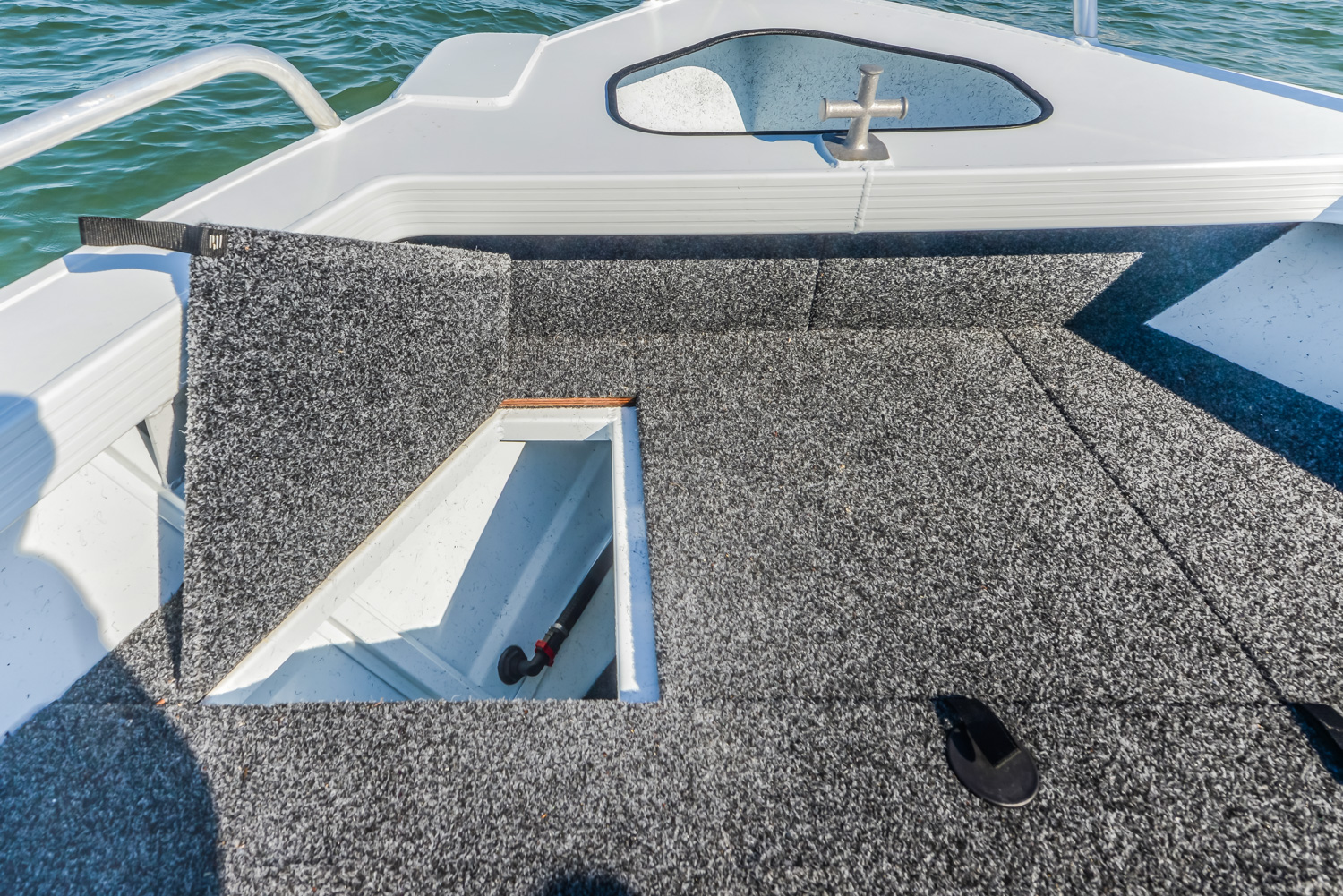

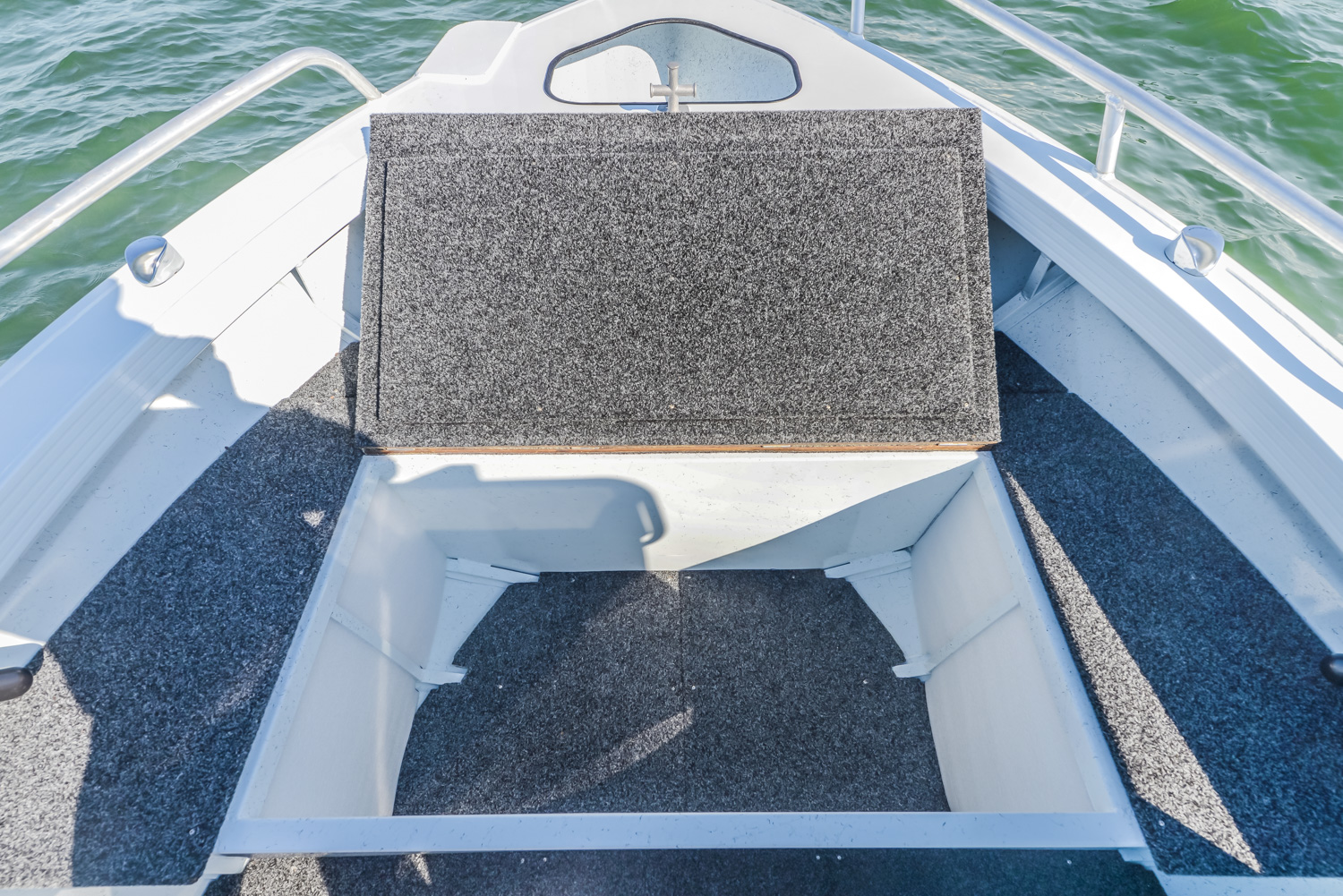

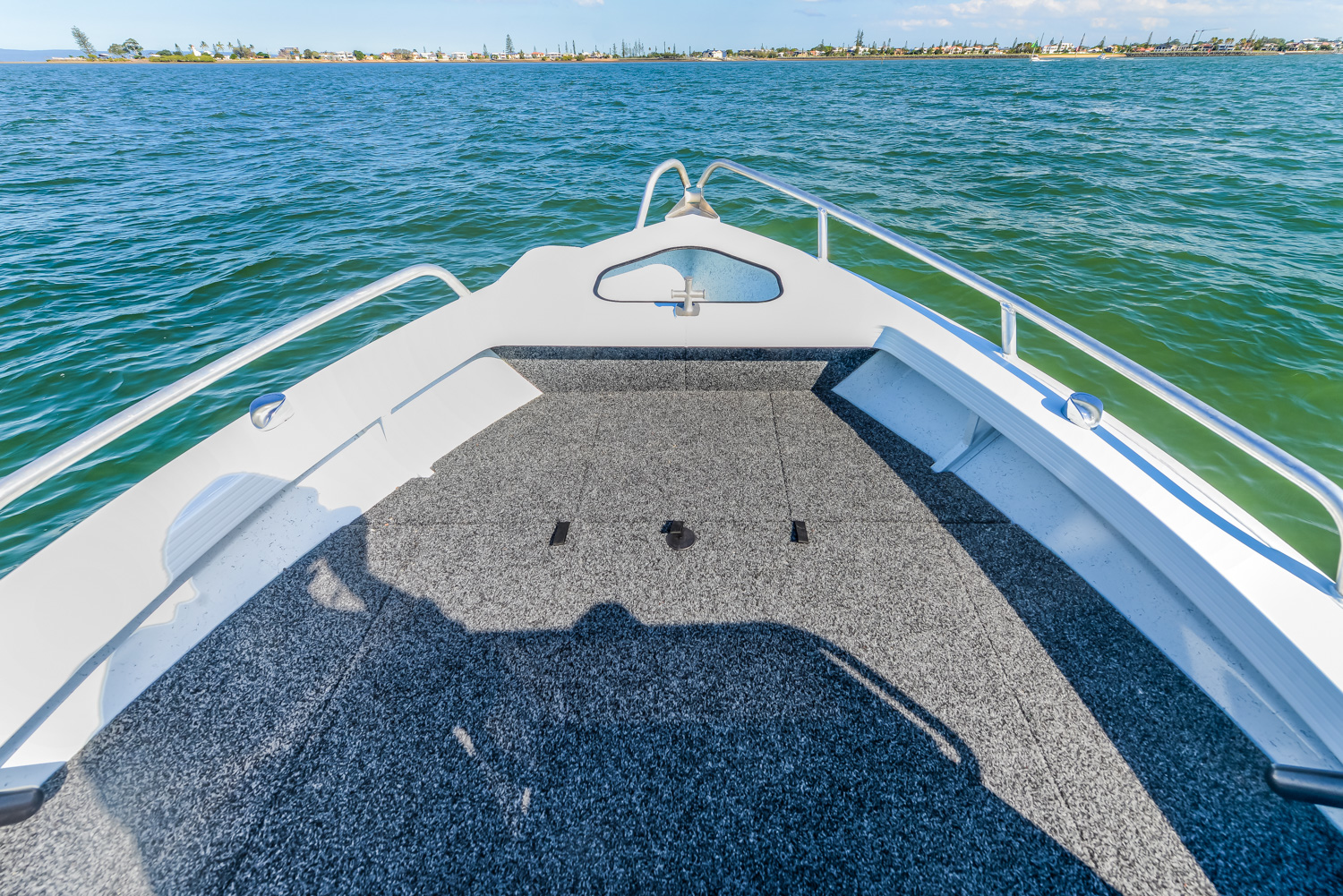

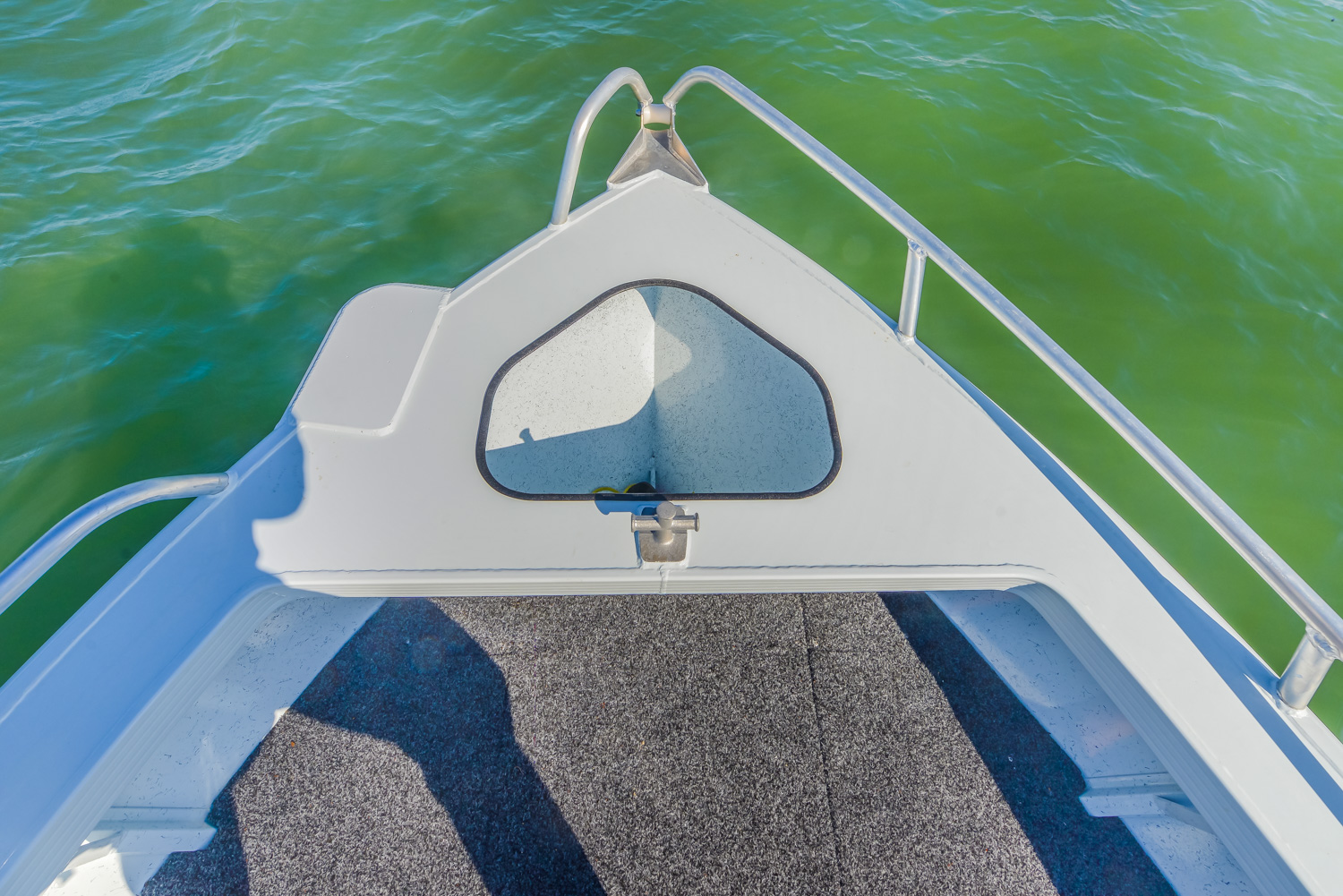

Front casting platform with 4 x hatches
Flotation – under floor
Floor – carpet / plywood
Gunwhale rubber insert
Painted chine up & inside
Pinstriping
3mm plate sides
Planing strakes – welded
Reverse chines  ✓  ✓  ✓  ✓
Rod holders (plastic) 6 6 6 6
Side pockets
Spray chines
Steering – hydraulic opt
Steering – mechanical
Tie Down lugs  ✓  ✓  ✓
Towing eye (double)
Transducer mount bracket
Wide side decks
FUEL TANK
Under floor / deck fill / gauge 100ltr 150ltr 175ltr 200ltr
ELECTRICAL
Accessory pre-rig. Includes: battery box, isolation switch, switch panel, navigation lights, anchor light & bilge pump
TRANSOM
Ultimate edge – Long Shaft 20″
Ultimate edge – Extra Long Shaft 25″
RAILS
Heavy duty 32mm low bow rails
Console screen grab rail
Heavy duty 32mm rear transom rails
SEATS
Fully upholstered folding seats & pedestal 2 2 2 2
Seat Sockets 5 5 5 5



FACTORY OPTIONS 490 520 550 590
Sea Jay Trailer. Galvanised Steel or I Beam Alloy.
Get 12 months Free Extra Warranty
opt opt opt opt
Bait Board. Standard, Deluxe or Removable opt opt opt opt
Coloured paint (White or Pipeline Grey as standard) opt opt opt opt
Centre Console or Side Console opt opt opt opt
Dual Battery accessory pre-rig upgrade opt opt opt opt
Extra Deluxe Seats (comes with 2 deluxe seats as standard) opt opt opt opt
Hatch over transom cutout opt opt opt opt
Hydraulic steering opt std std std
Minn Kota Factory fit up opt opt opt opt
Printed Vinyl Wrap opt opt opt opt
Rod Locker opt opt opt opt
Rod holder upgrade from plastic to alloy opt opt opt opt
Saltwater Deck Wash Kit opt opt opt opt
Sarca Anchor #3 with s/s swivel opt opt opt opt
Stress Free Winch opt opt opt opt
Upgrade to Velocity TD (Tuff Deck) n/a opt opt opt

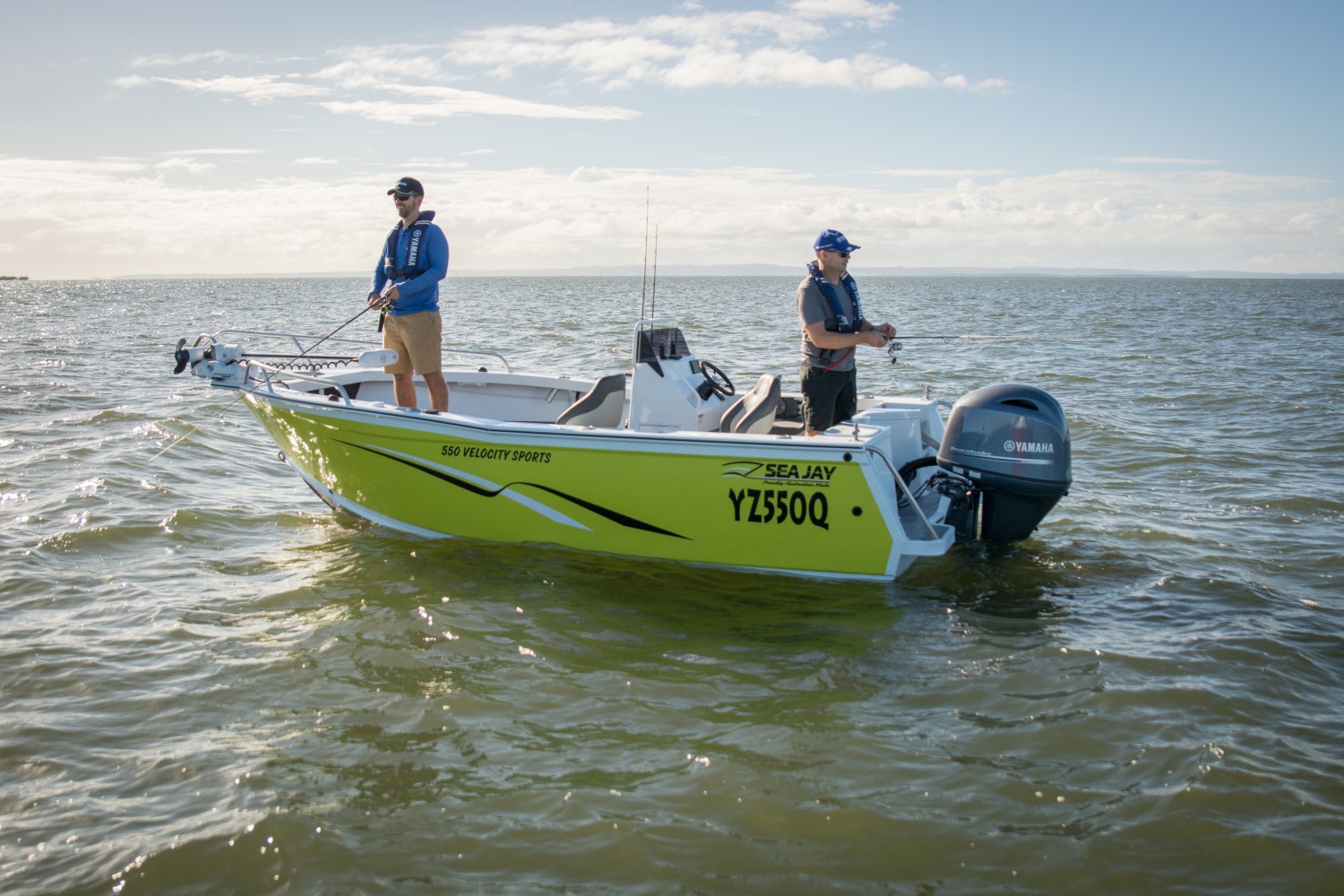

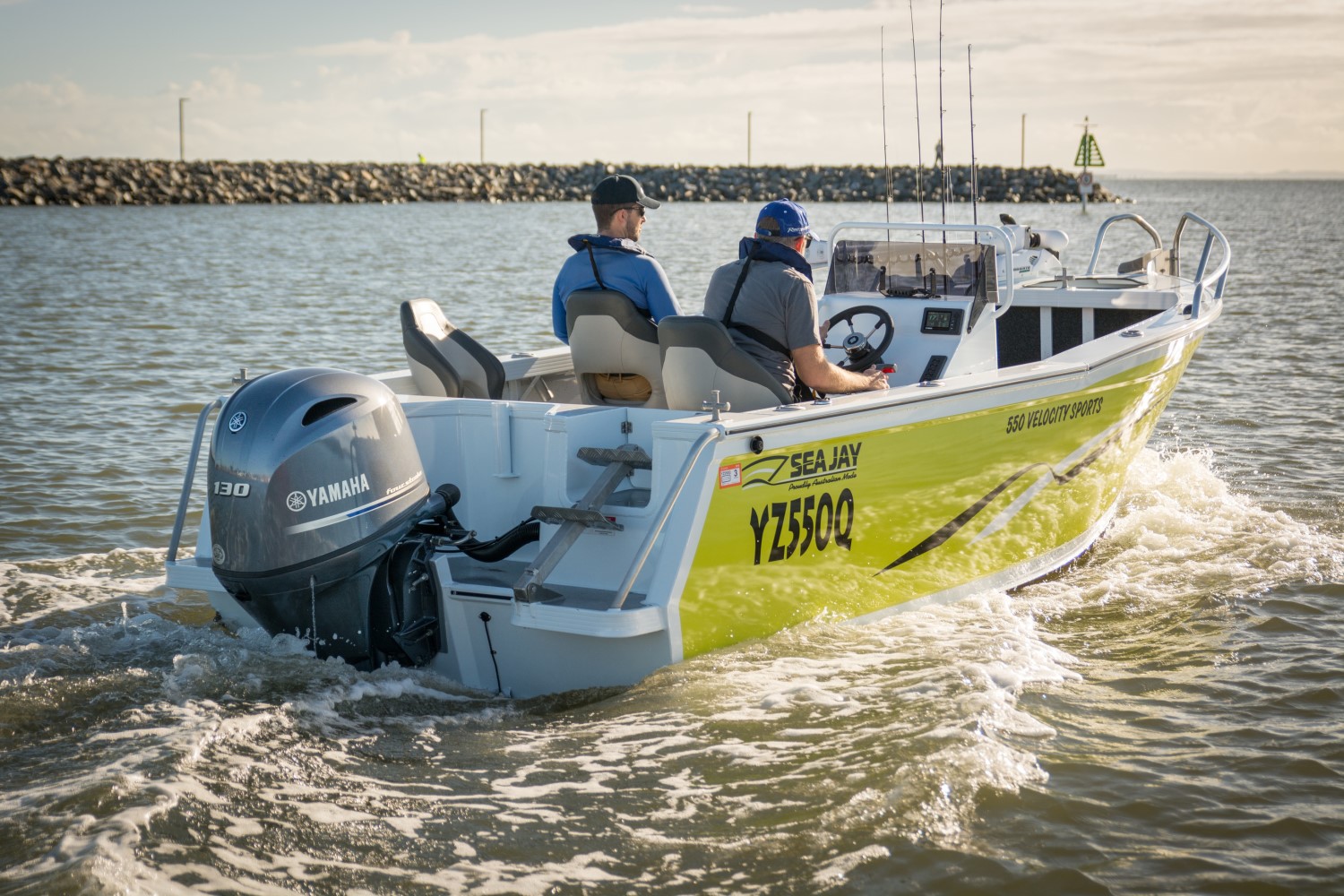

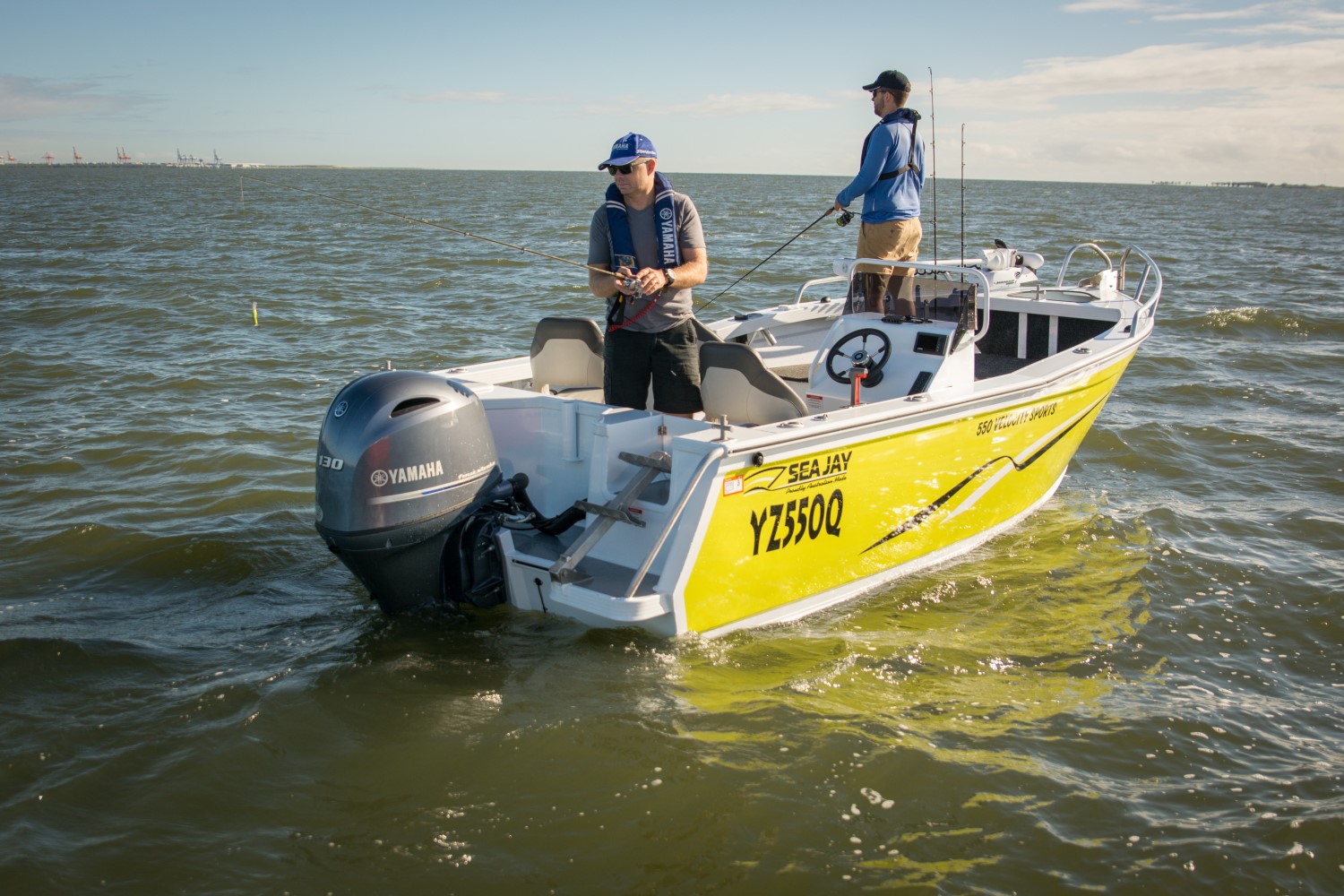

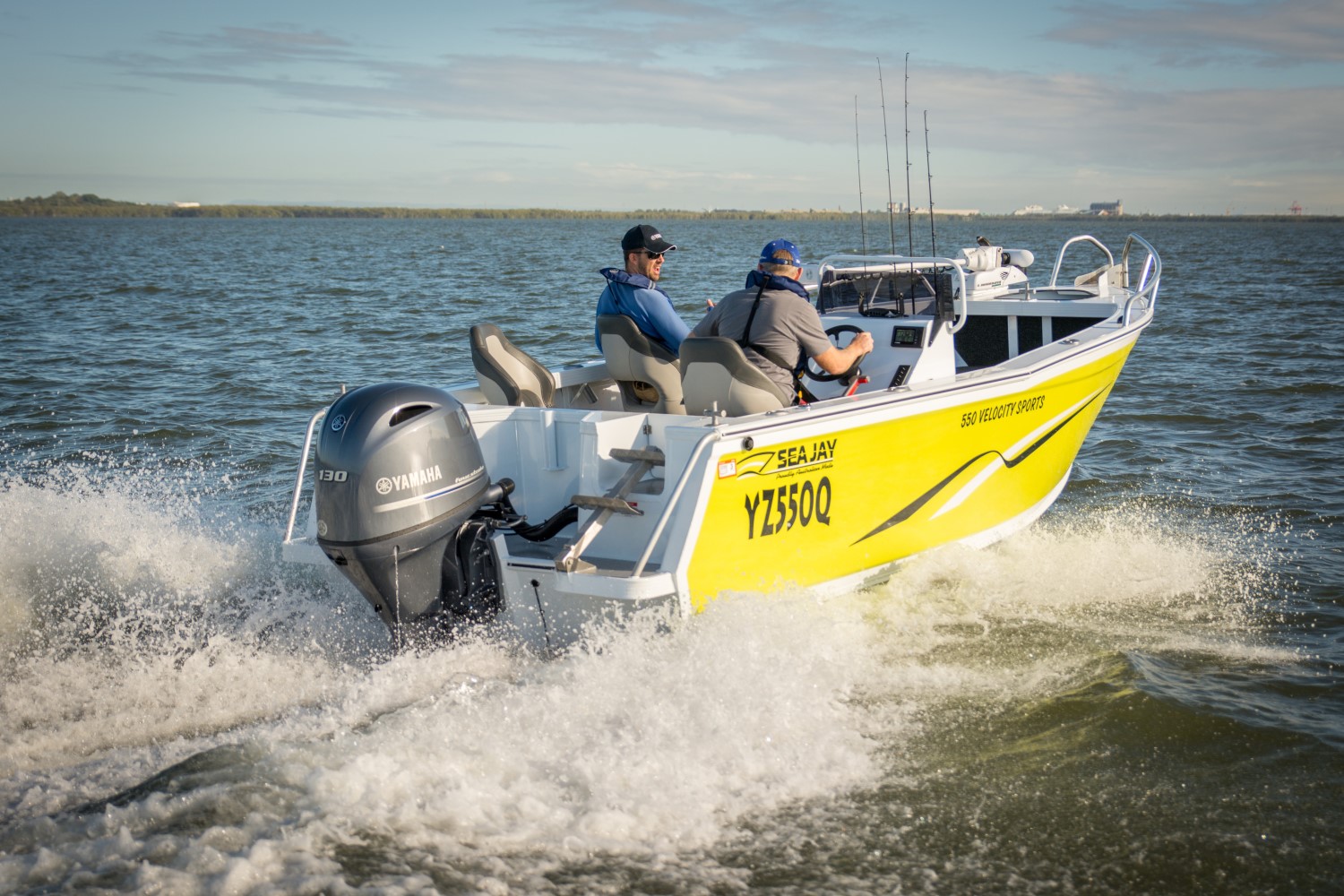

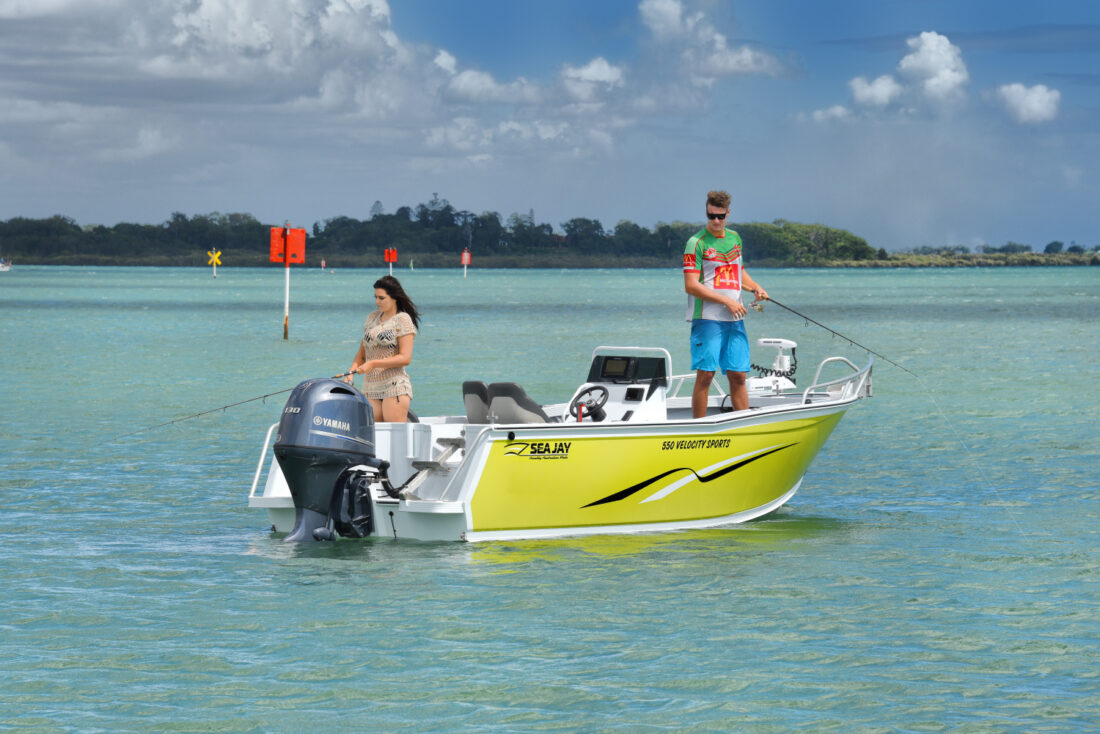

550 Velocity Sports
