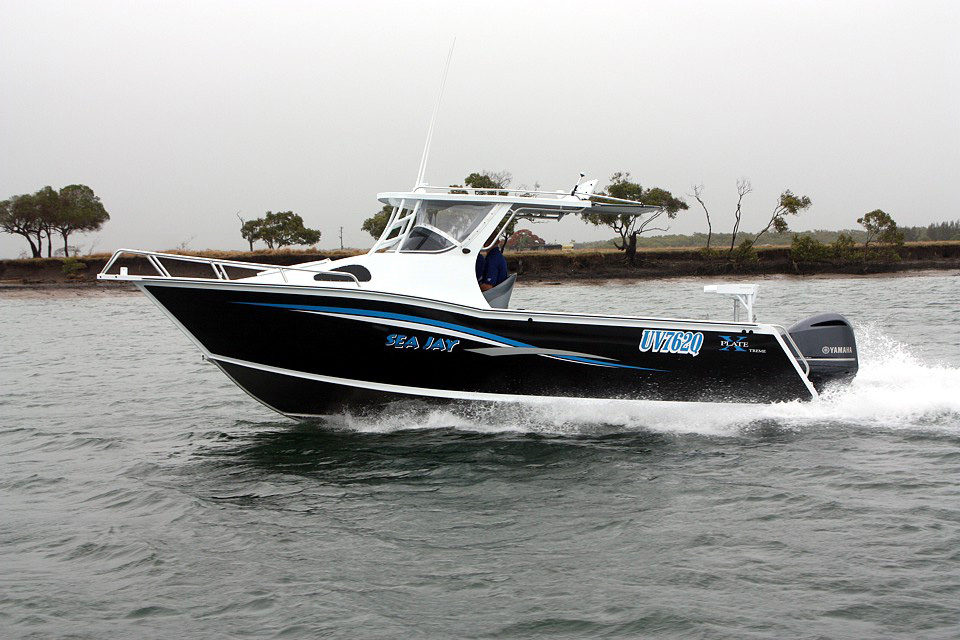

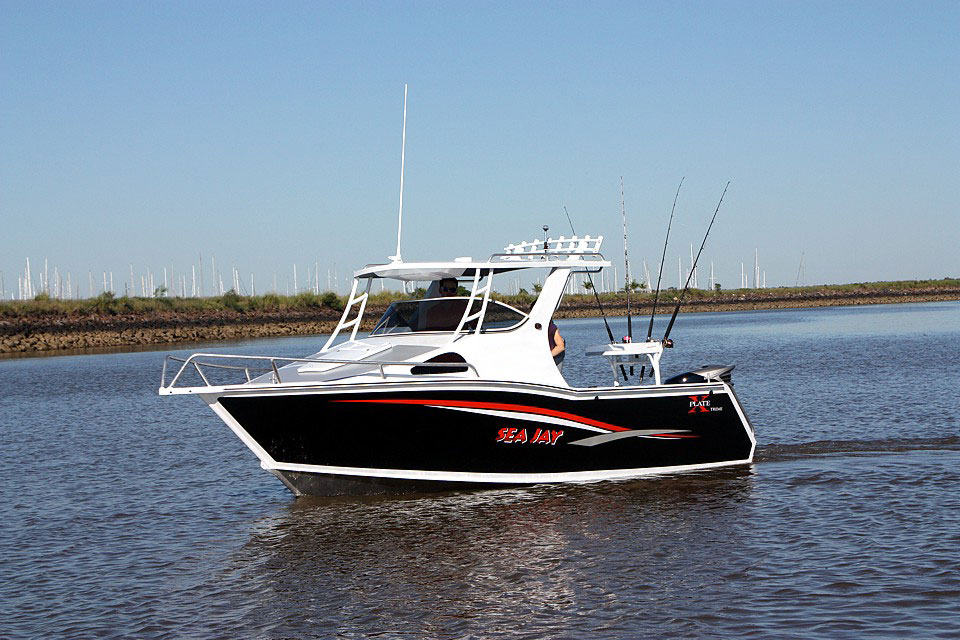

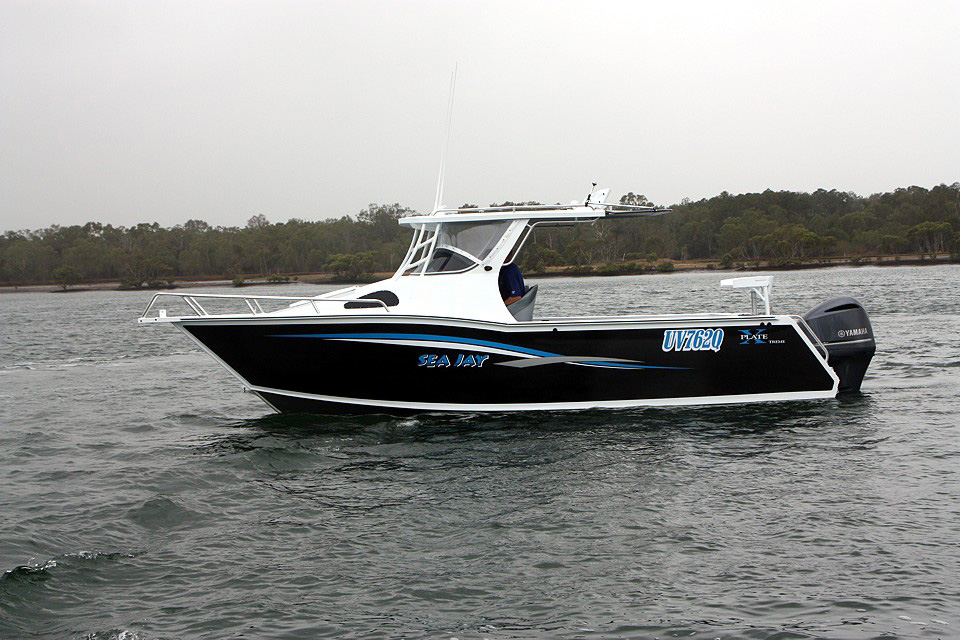

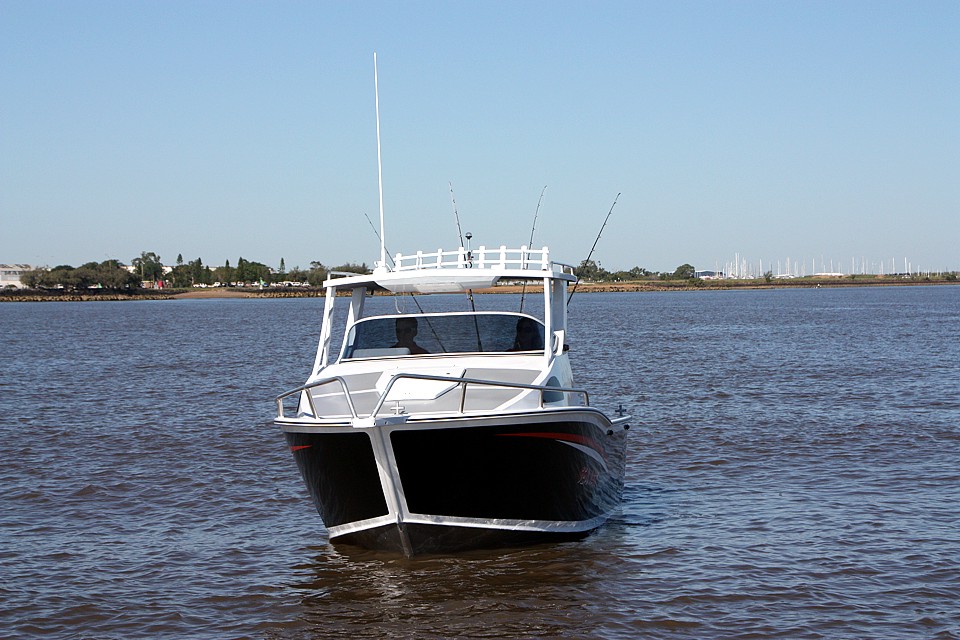

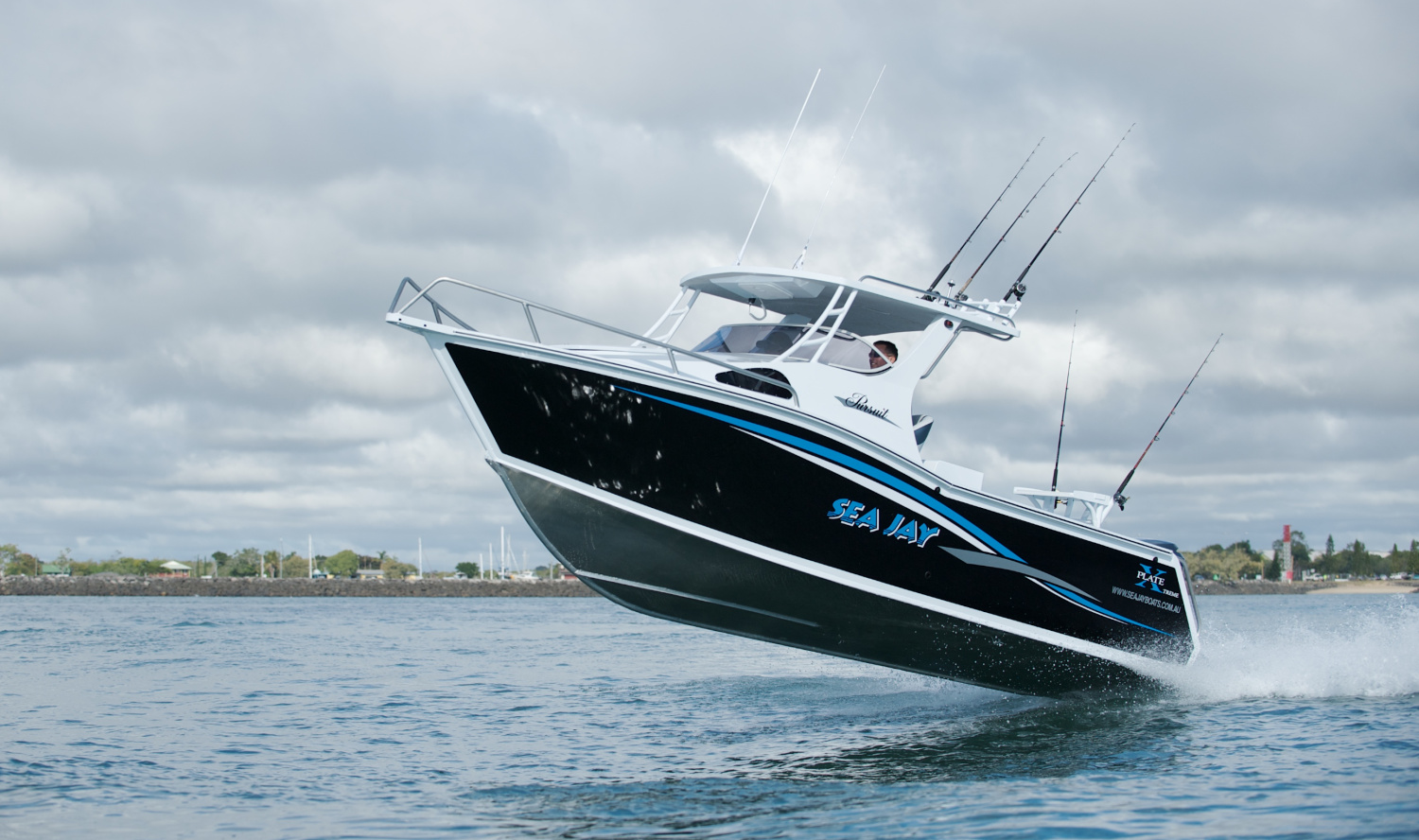

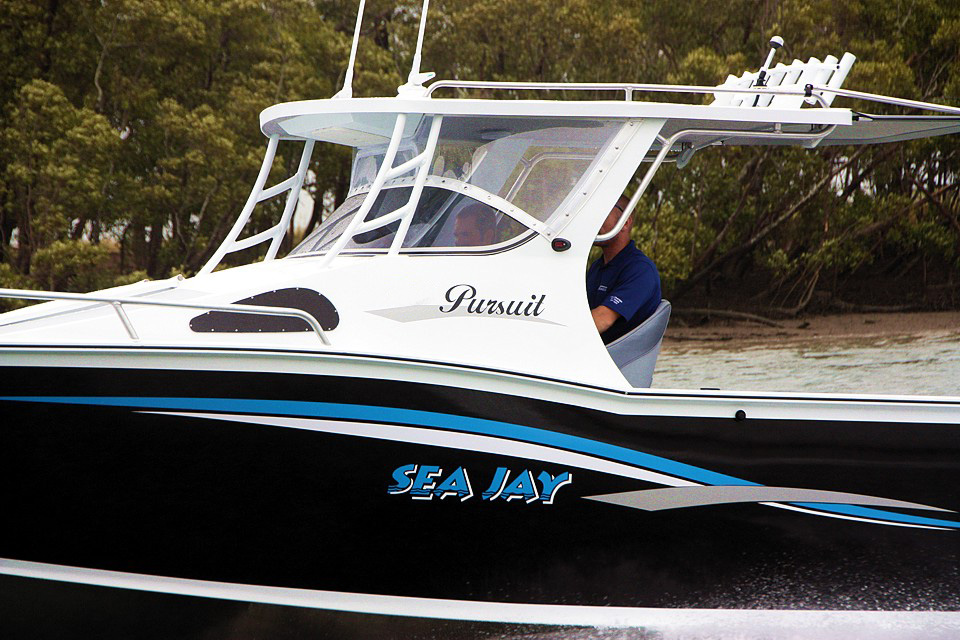

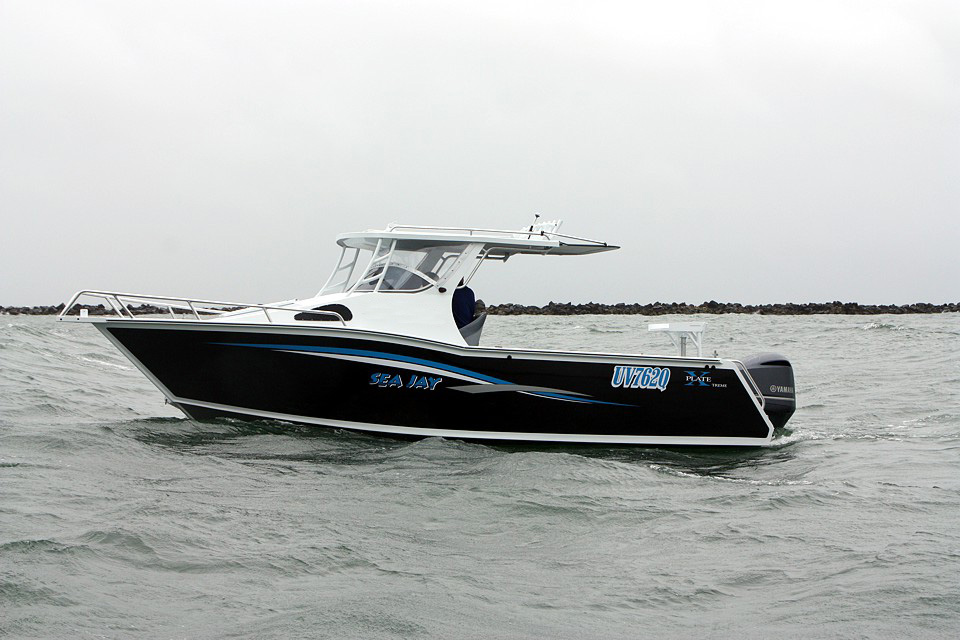

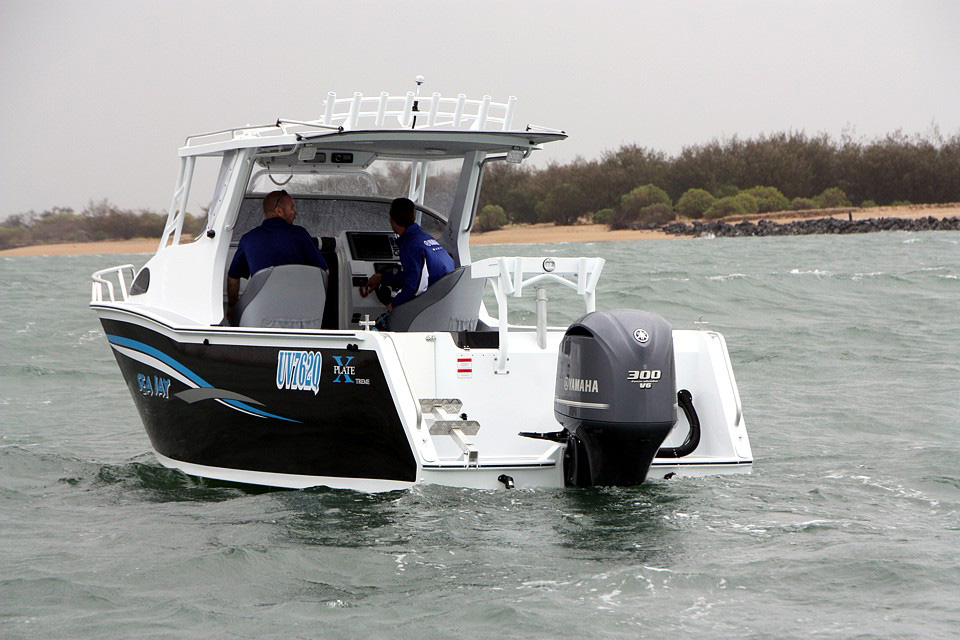

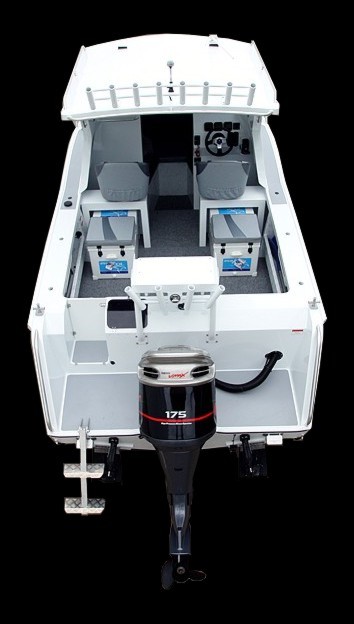

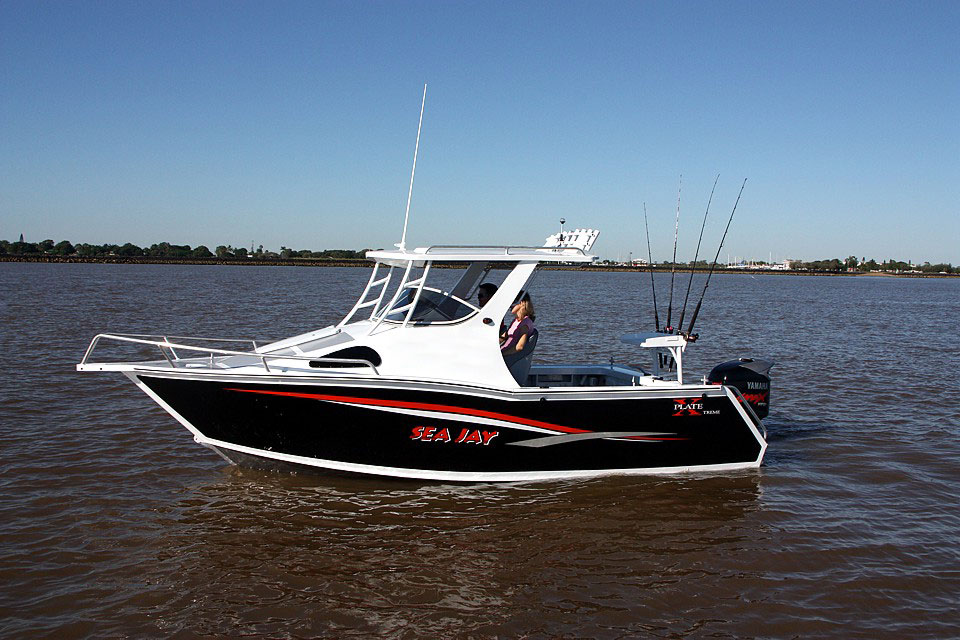

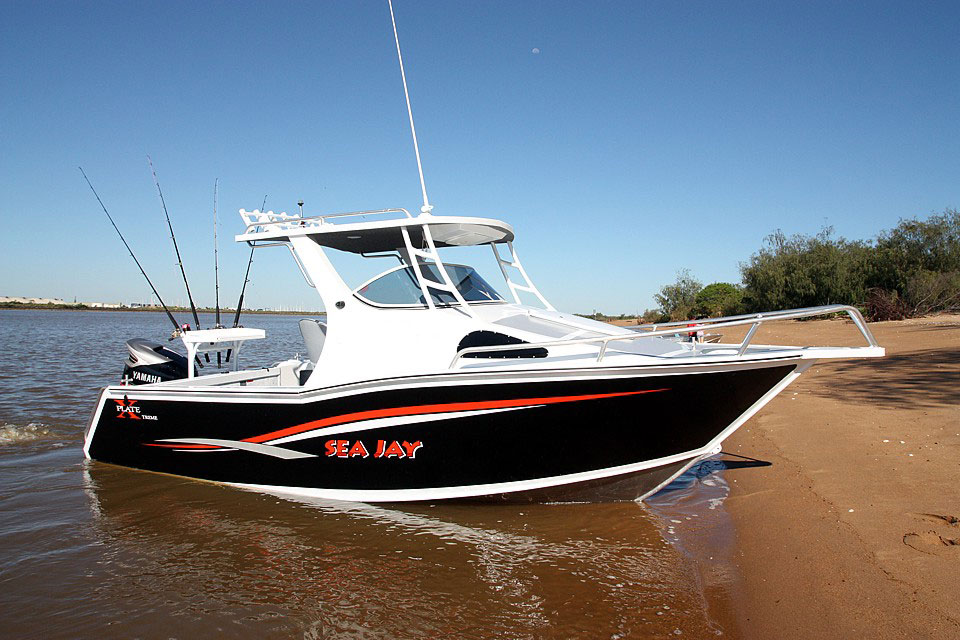

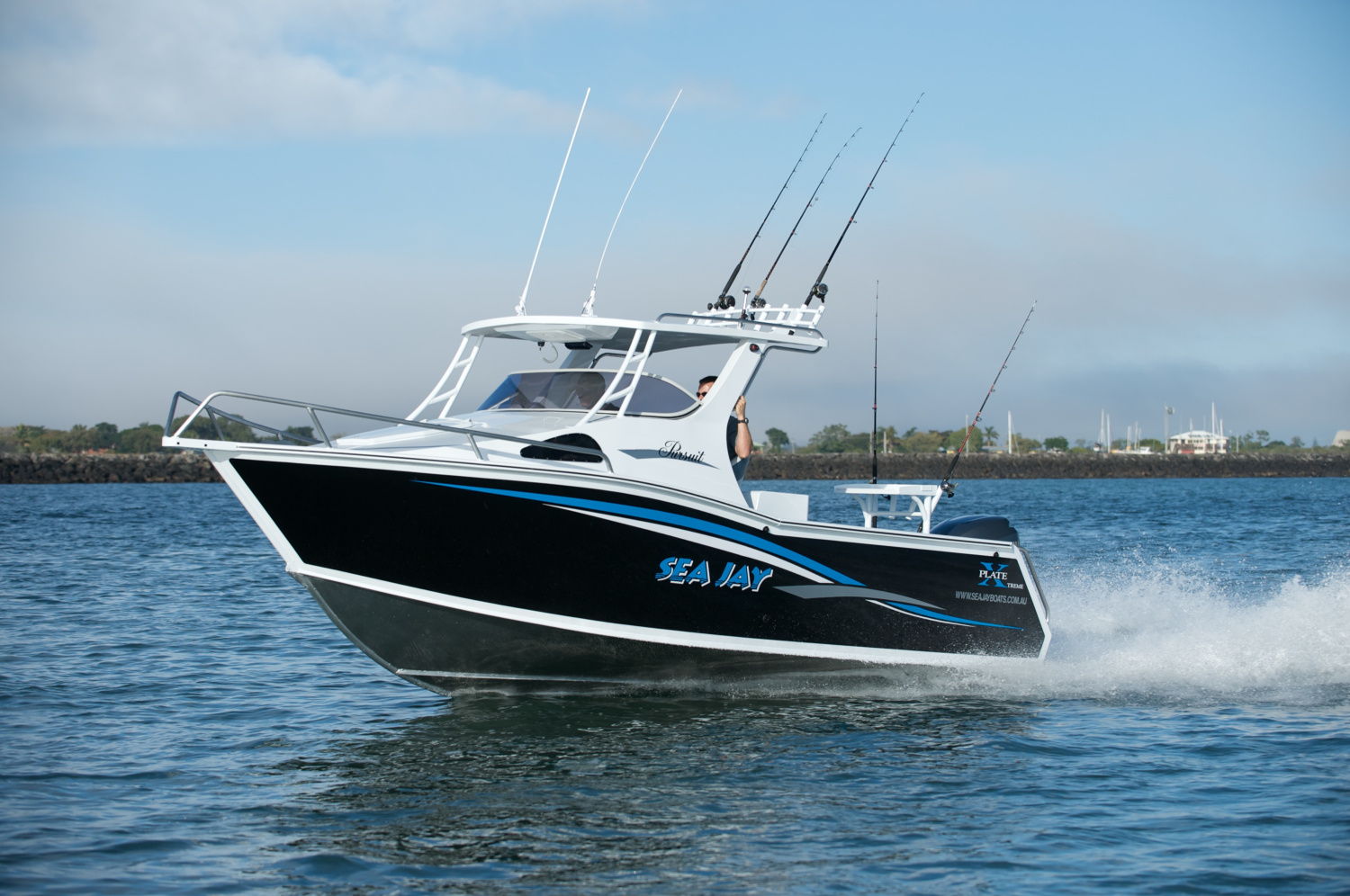

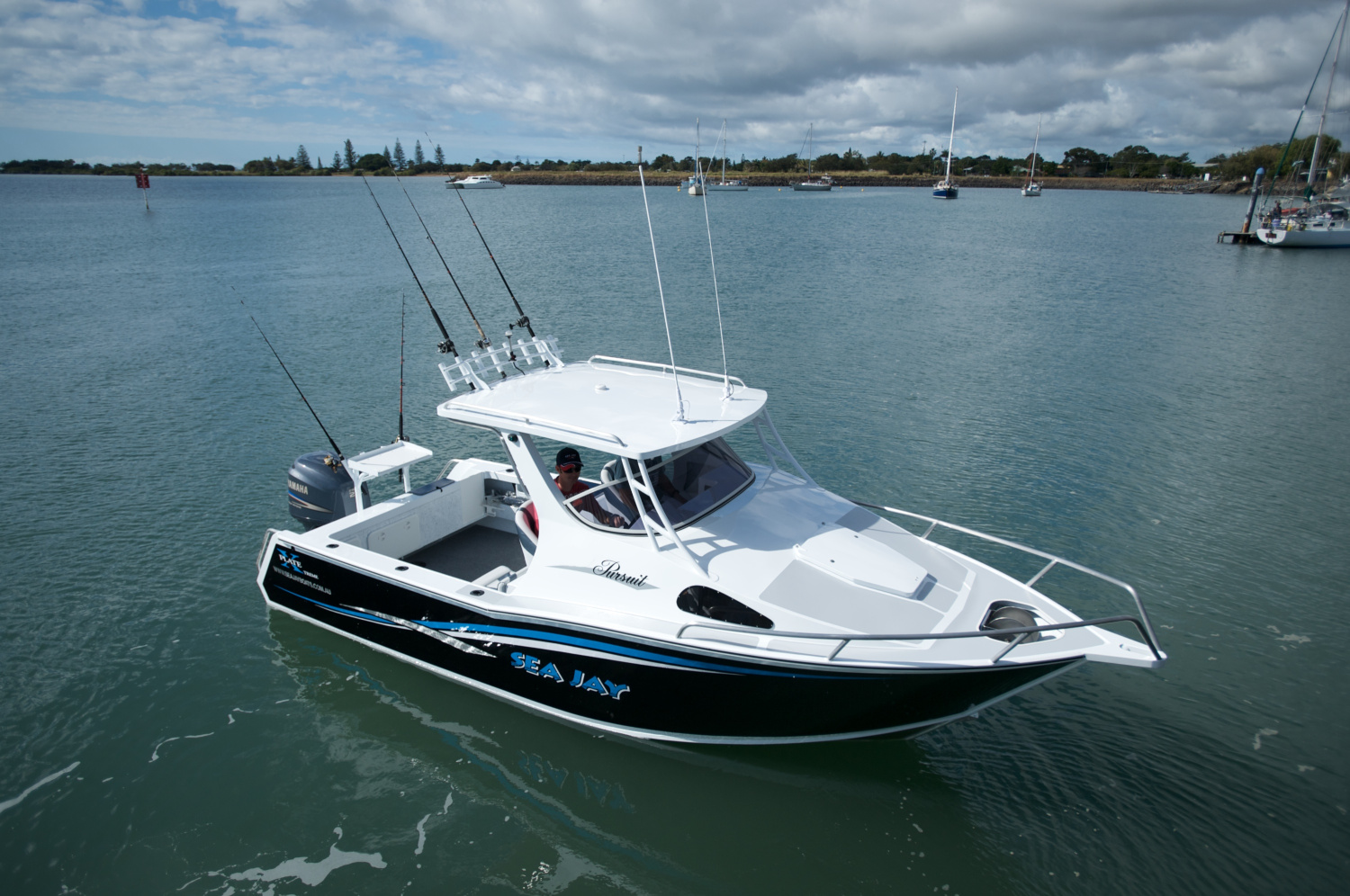

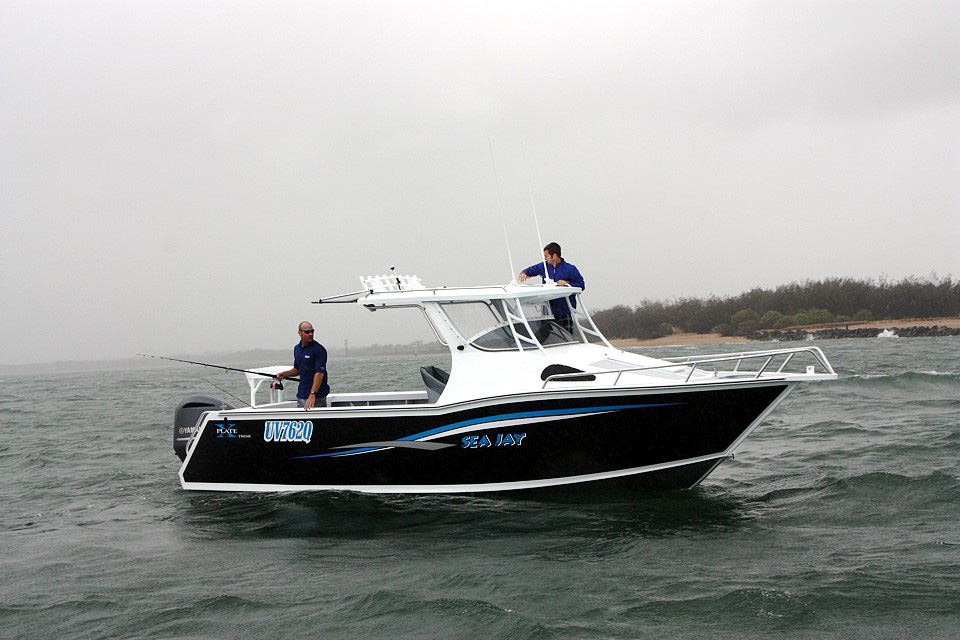

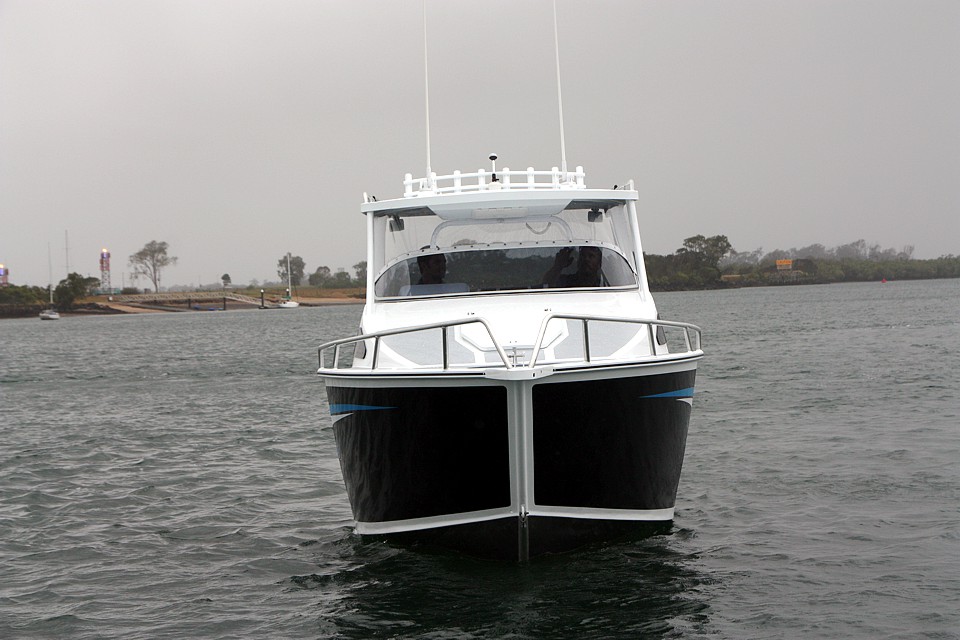

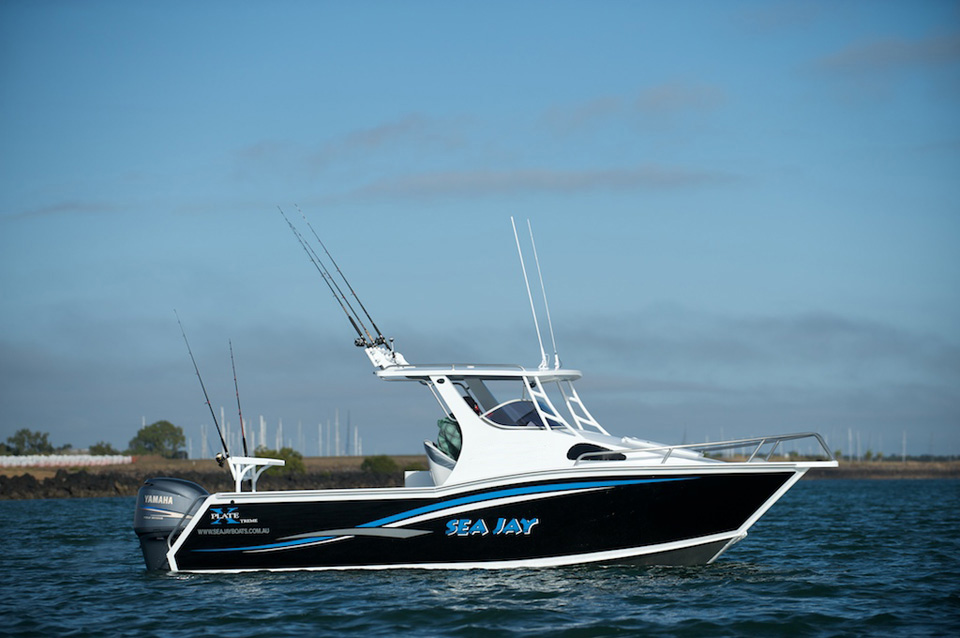

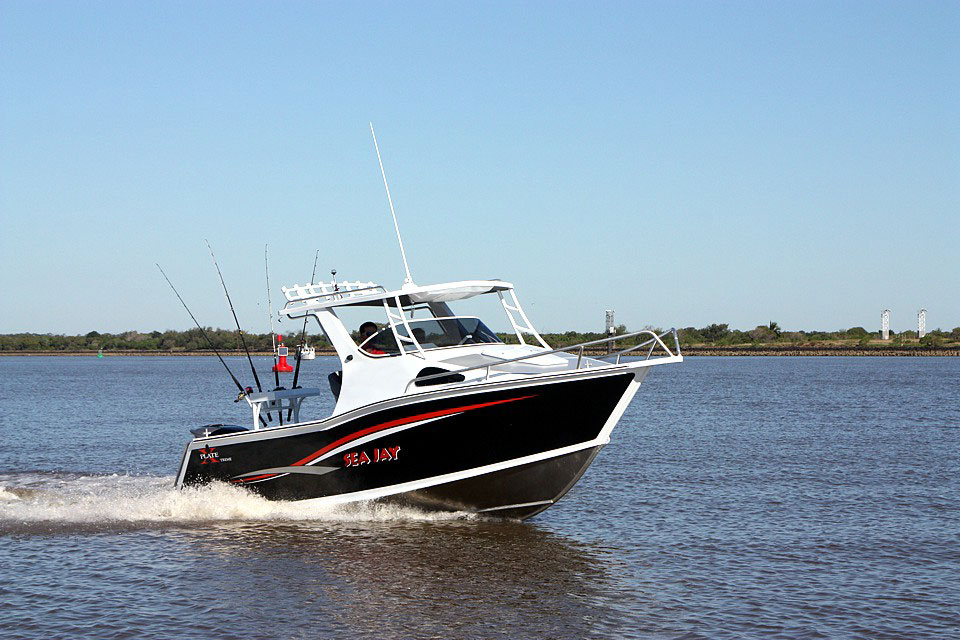

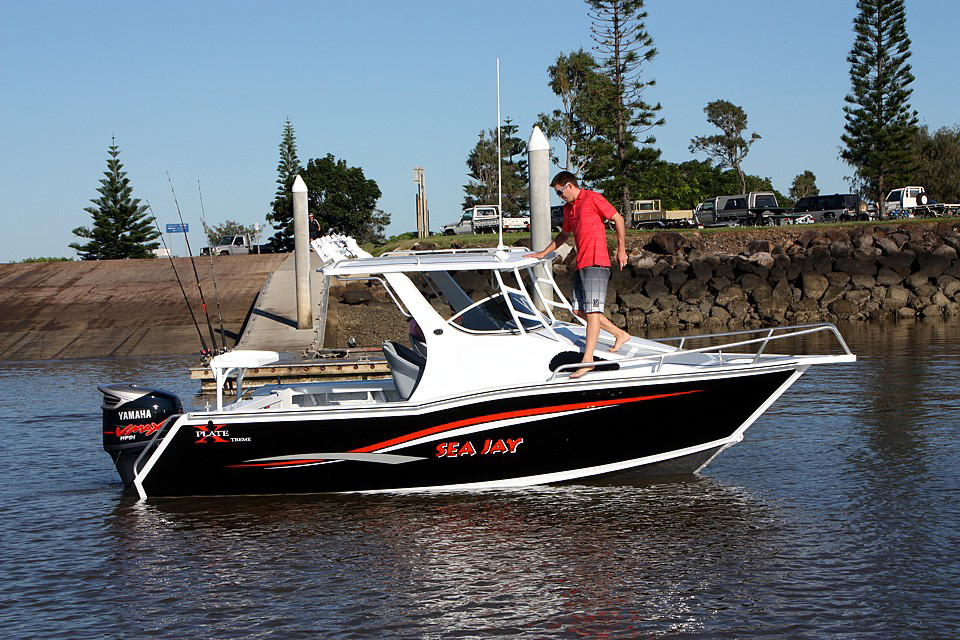

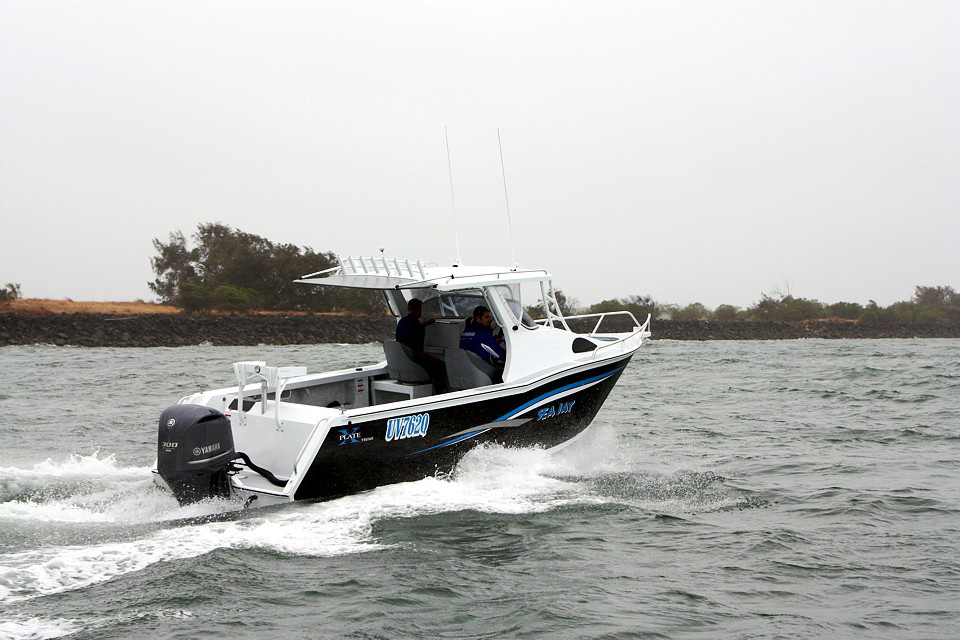

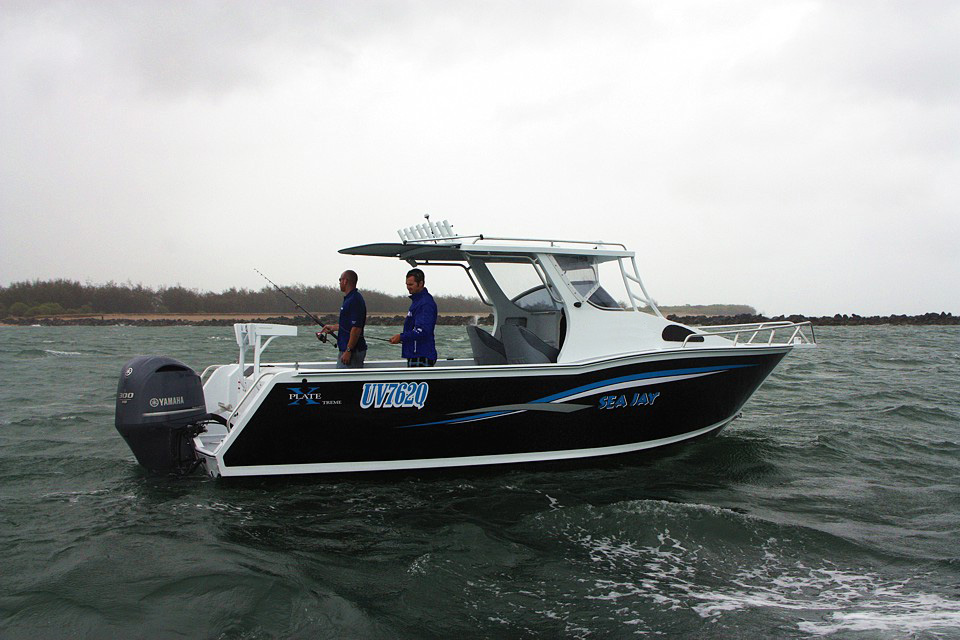

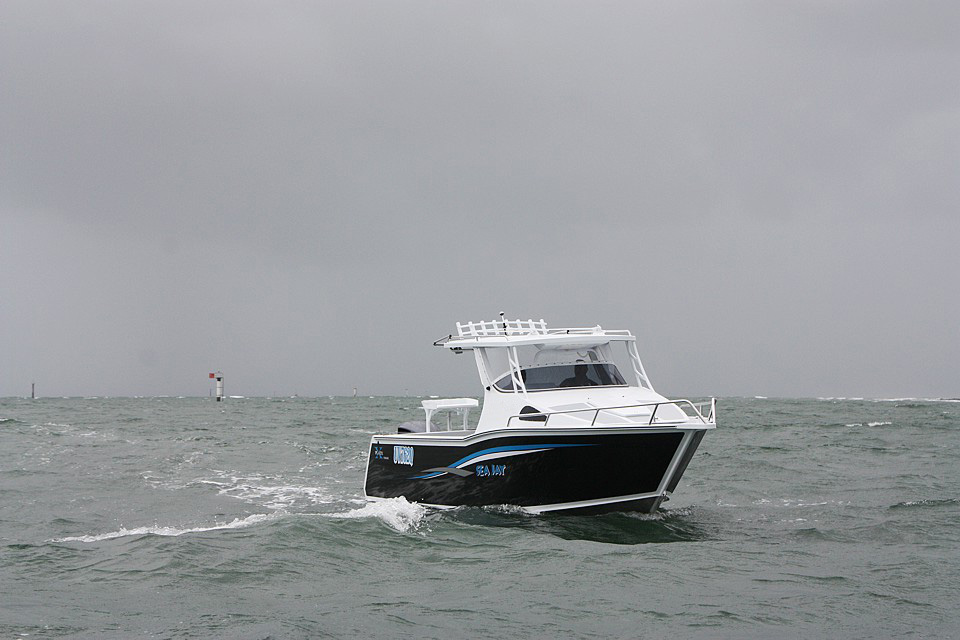

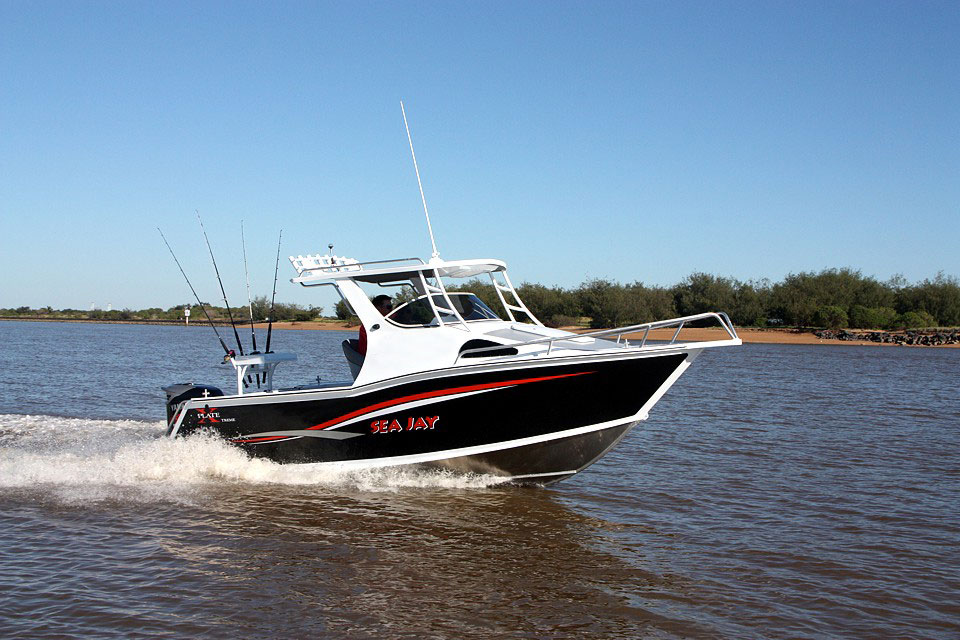

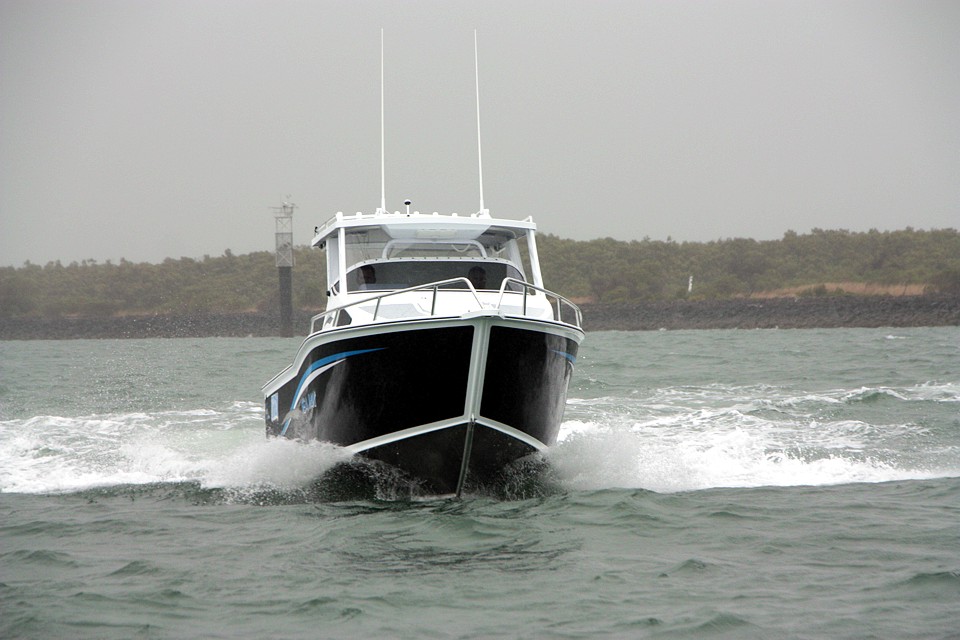

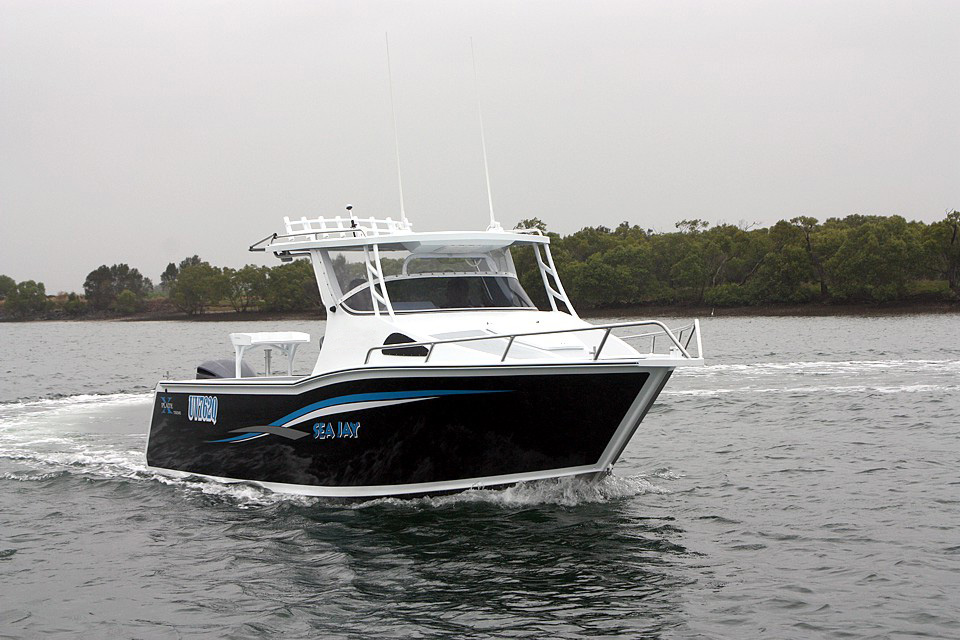

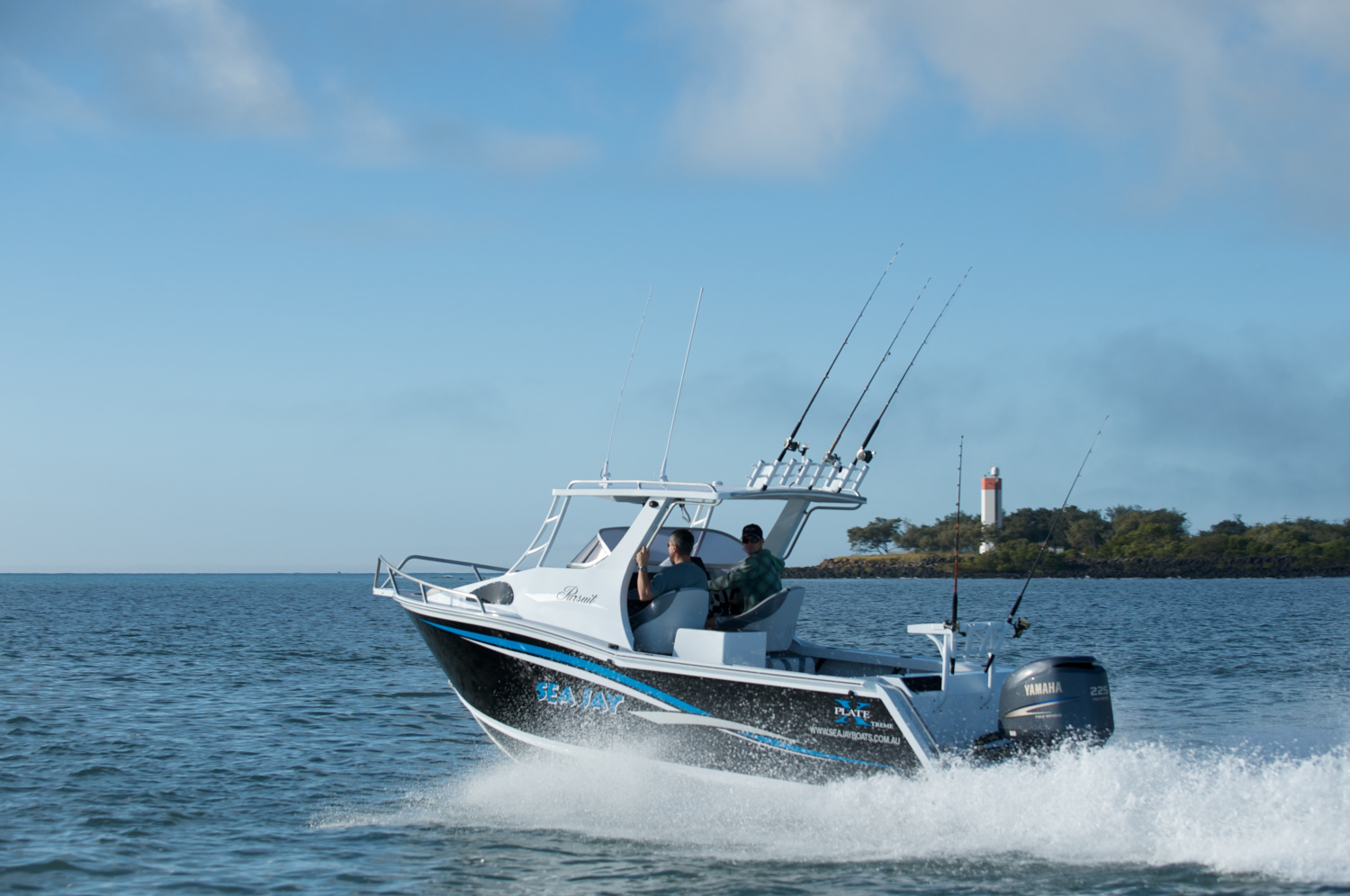

If you’re after a true offshore Plate Boat with long range capabilities, then the Pursuit range of Plate Xtreme Boats is for you. Masterfully engineered in house using the latest in 3D modelling, the Pursuit boasts unrivaled strength and handling that is absolute paramount when heading out into open waters. The full plate construction leaves nothing to chance with safety coming in the form of foam filled cavities and a full buoyancy chamber due to the fully sealed, self draining floor. With sleek lines, gracious curves, and eye catching graphics, the Pursuit will turn heads where ever it goes.
The “Ultimate Fishing Platform” is not a term that can be thrown around lightly, however our Freedom plate alloy models with 360° of fishable area would come very close.
Specifications | 670 | 720 | 770 | 805 |
3D designed & CNC cut within factory | • | • | • | • |
bottoms (mm) | 5.0 | 5.0 | 5.0 | 5.0 |
sides (mm) | 4.0 | 4.0 | 4.0 | 4.0 |
transom (mm) | 5.0 | 5.0 | 5.0 | 5.0 |
stringers – longitudinal (mm) | 5.0 | 5.0 | 5.0 | 5.0 |
bulkheads – solid (mm) | 4.0 | 4.0 | 4.0 | 4.0 |
keel – solid (mm) | 5.0 | 5.0 | 5.0 | 5.0 |
beam (m) | 2.49 | 2.49 | 2.49 | 2.49 |
overall length (m) | 6.93 | 7.39 | 7.78 | 8.17 |
dead rise (deg) (at transom) | 19.5 | 19.5 | 20 | 20 |
depth (m) | 1.6 | 1.67 | 1.71 | 1.73 |
depth (m) – cabin step down floor to cabin roof | 1.53 | 1.59 | 1.68 | 1.69 |
depth (m) – internal floor to top of side deck (freeboard) | 0.71 | 0.71 | 0.75 | 0.76 |
depth (m) – keel to top of rocket launcher | 2.81 | 2.81 | 2.91 | 2.91 |
no. of persons (at 80kg per person) | 7 | 7 | 7 | 7 |
weight – boat (dry) / motor / Trailer (kg) (weight is approximate & depends on engine/options) | 2180 | 2420 | 2650 | 2750 |
rec hp | 150 | 200 | 225 | 225 – 250 |
max hp | 200 | 250 | 250 | 300 |
max motor weight (kg) | 350 | 390 | 390 | 460 |
STANDARD HULL INCLUSIONS | 670 | 720 | 770 | 805 |
anchorwell | • | • | • | • |
anchorwell mounting plate to suit stress free anchor winch | • | • | • | • |
bait tank cavity (alloy) | • | • | • | • |
battery (suits dual) & oil rack – in transom | • | • | • | • |
bollards – 1 x front, 2 x rear | • | • | • | • |
bow sprit – dual rollers | • | • | • | • |
bungs – alloy 38mm x 2 | • | • | • | • |
cabin drop down foot well (drained) | • | • | • | • |
cabin storage – under bunks | • | • | • | • |

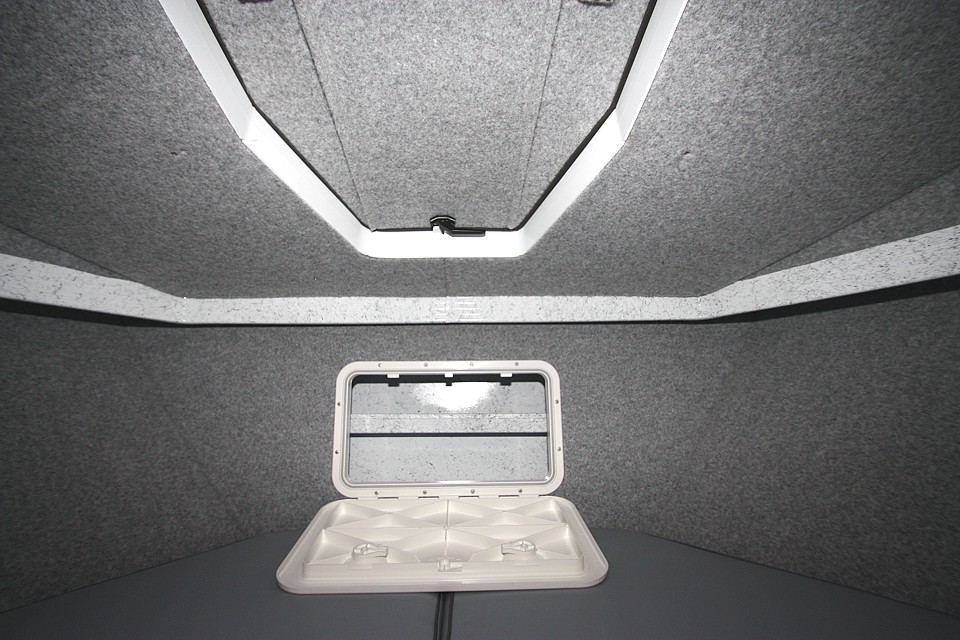

cabin hatch (alloy) with support stay – (740mm x 57mm opening)) | • | • | • | • |
floor – 3mm alloy foot well (drained) | • | • | • | • |
flotation – foam / air chambers | • | • | • | • |
foot rest – driver & passenger side | • | • | • | • |
gunwhale shelf x 2 | • | • | • | • |

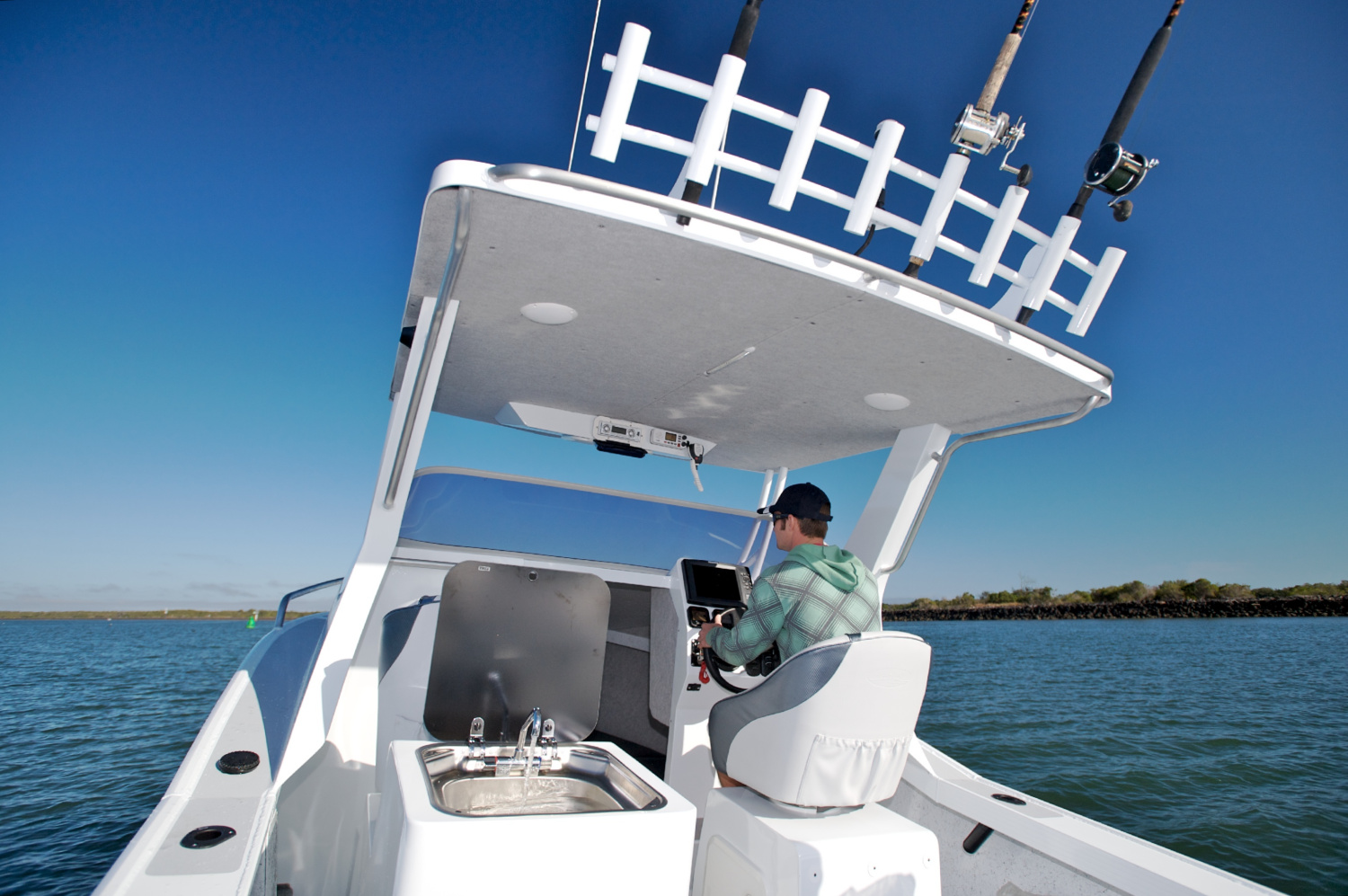

hard top – alloy | • | • | • | • |
helm & passenger pockets x 2 | • | • | • | • |

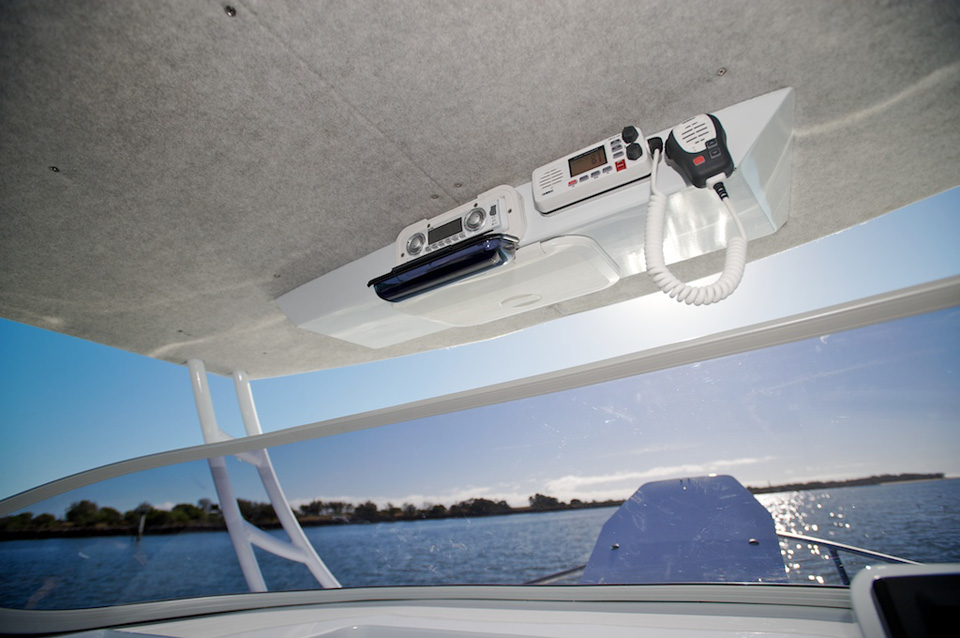

overhead radio console | • | • | • | • |
reverse chine hull | • | • | • | • |

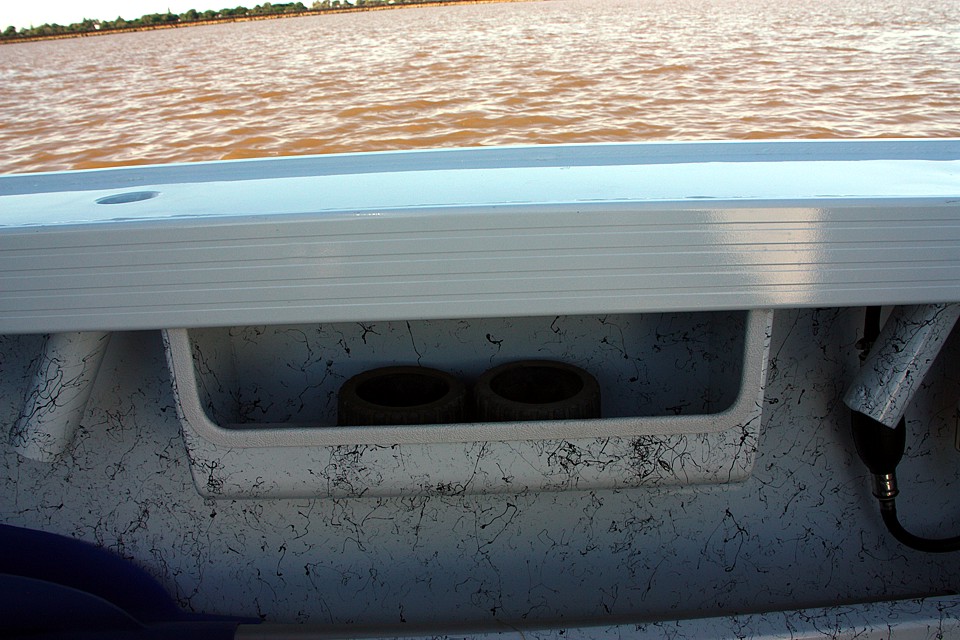

side pockets x 2 | • | • | • | • |
spray deflector strake | • | • | • | • |
steering assembly cover | • | • | • | • |
towing eye (double) – heavy duty | • | • | • | • |
transducer / trim tab mounting brackets x 2 | • | • | • | • |

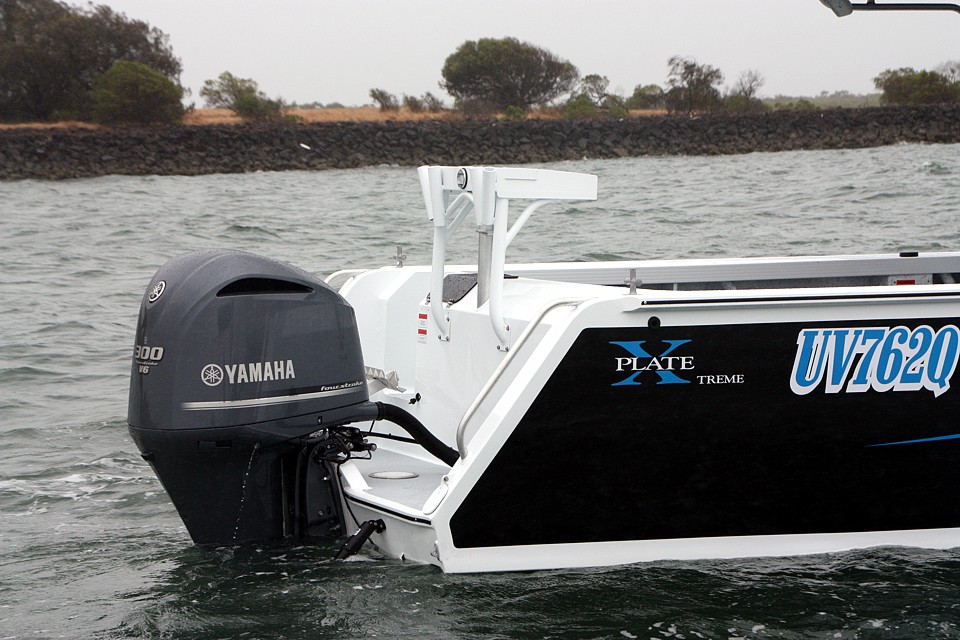

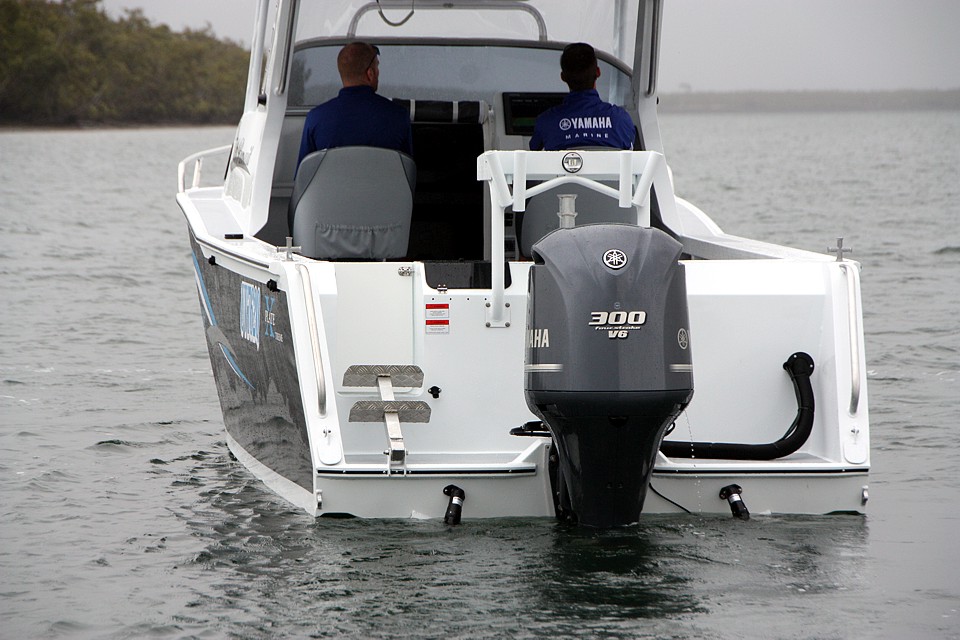

transom boarding platform – non skid | • | • | • | • |
wide side decks (230mm total width) | • | • | • | • |
STANDARD FITOUT INCLUSIONS | ||||

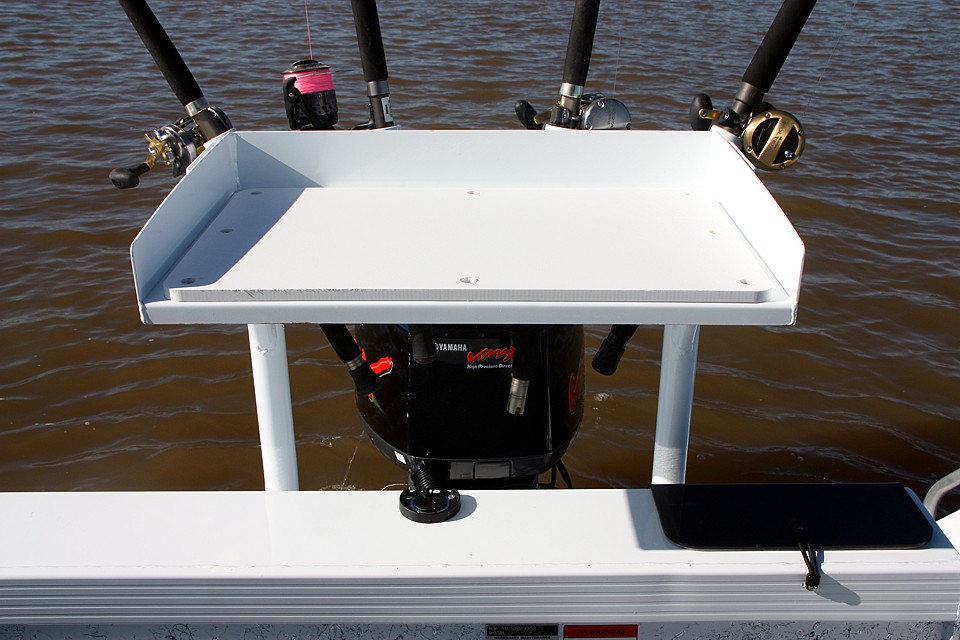

bait board – Alloy (includes 4 rod holder) | • | • | • | • |
bait tank plumbing (with Power Stream Aerator) | • | • | • | • |
boarding ladder – heavy duty | • | • | • | • |

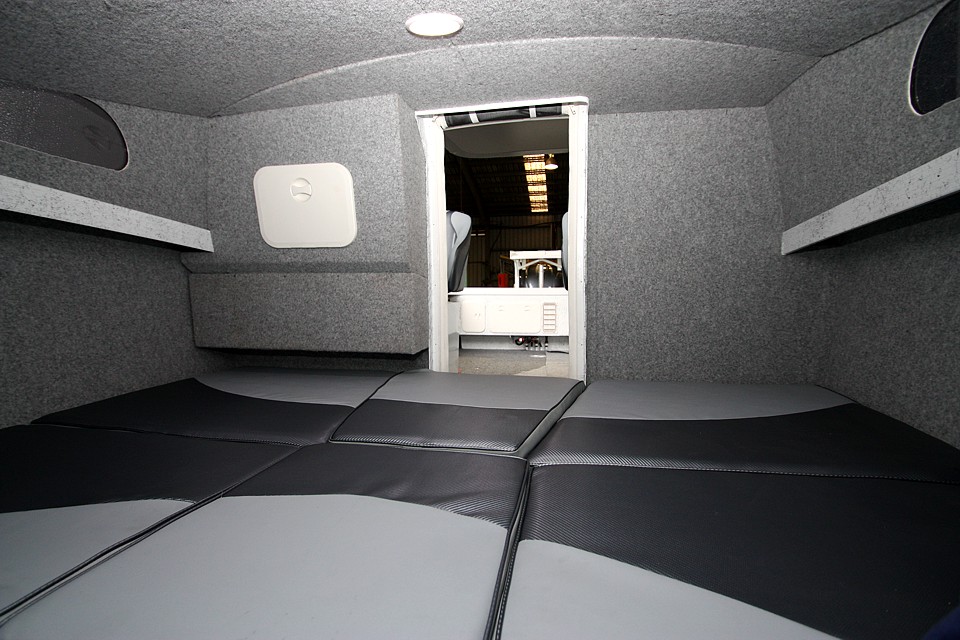

cabin bunk cushions (3″ foam in 6.8, 2″ foam in 5.6) | • | • | • | • |
cabin windows x 2 | • | • | • | • |
carpeted floor – marine grade | • | • | • | • |

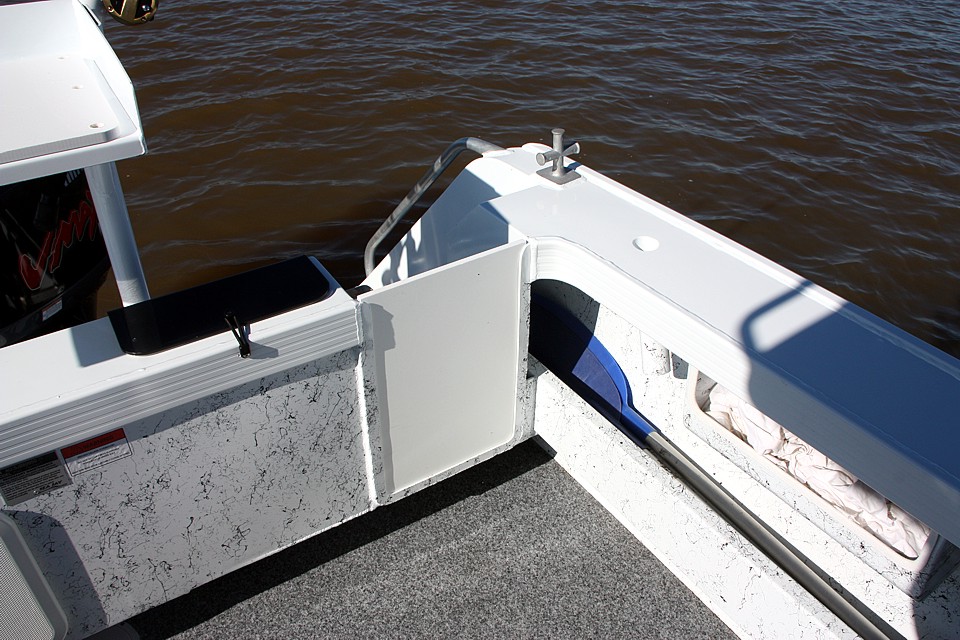

dive door | • | • | • | • |
flow-rite qwik-lok hose connections | • | • | • | • |
gunwhale rubber insert | • | • | • | • |
hood lining – cabin (roof & sides) | • | • | • | • |
hood lining – hardtop | • | • | • | • |
inspection port x 2 (in cockpit floor) | • | • | • | • |
moulded transom hatch x 1 (in transom boarding platform) | • | • | • | • |

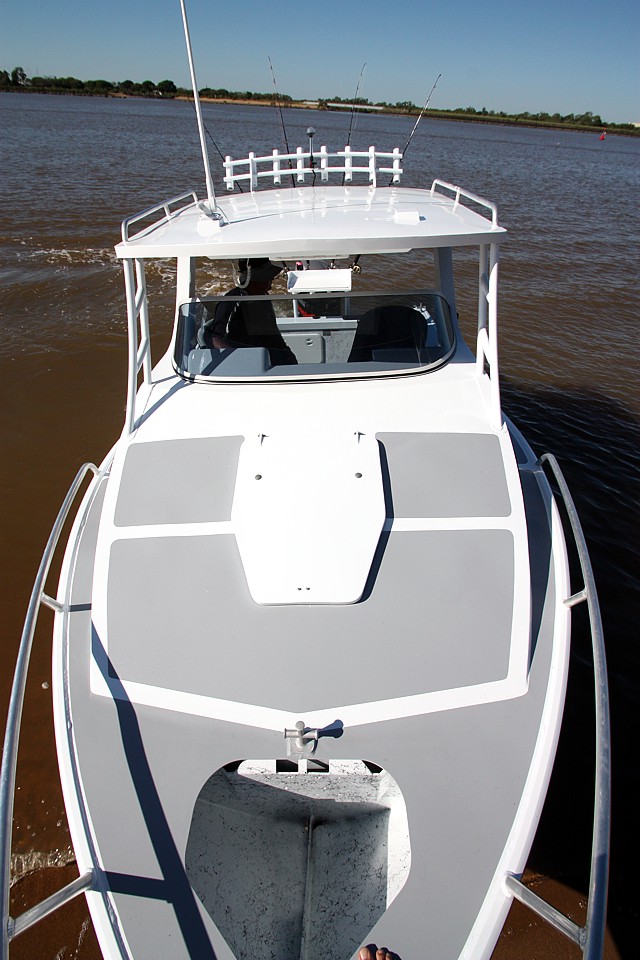

non skid top deck | • | • | • | • |
paint – white / fleck (2 pac commercial marine grade) | • | • | • | • |
pin striping | • | • | • | • |

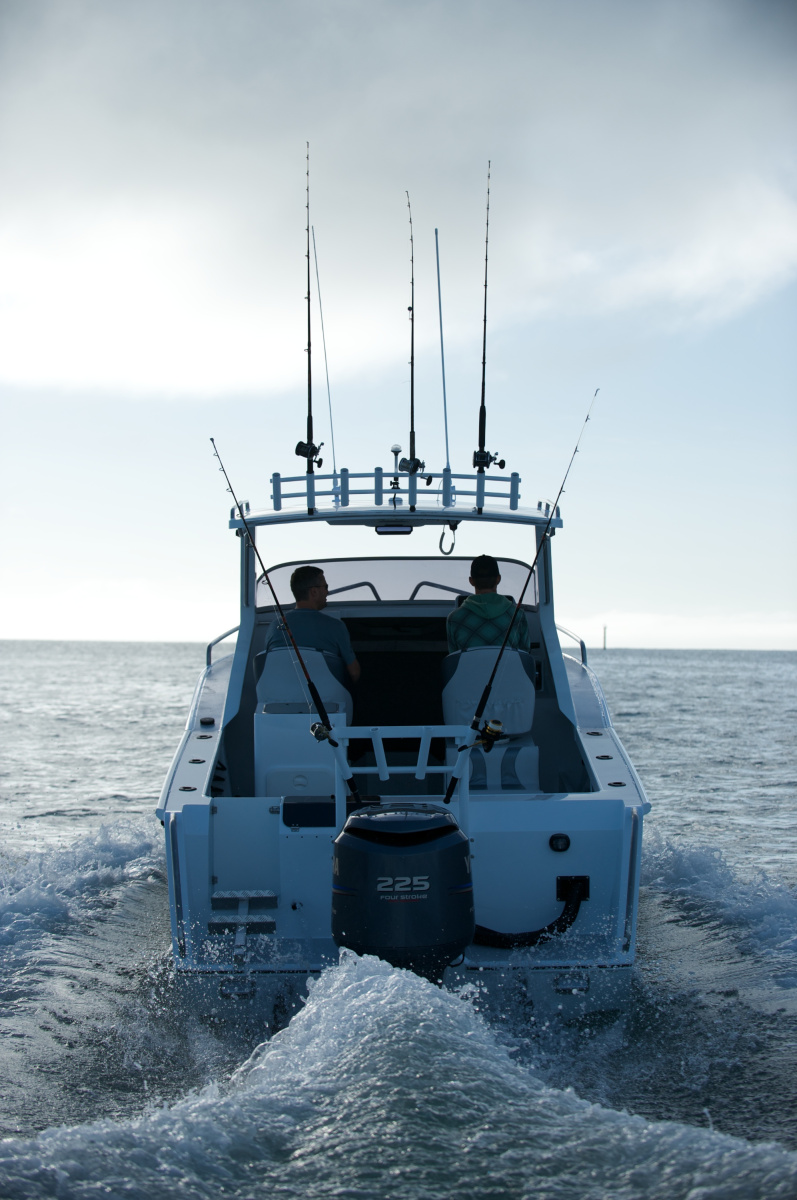

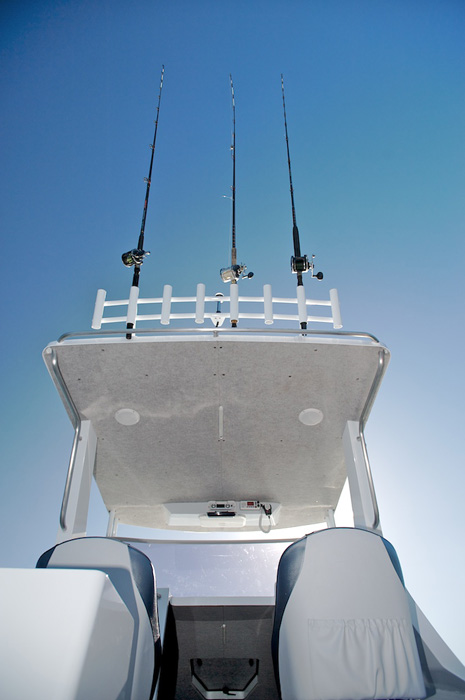

rocket launcher (alloy) – includes 8 rod holders | • | • | • | • |

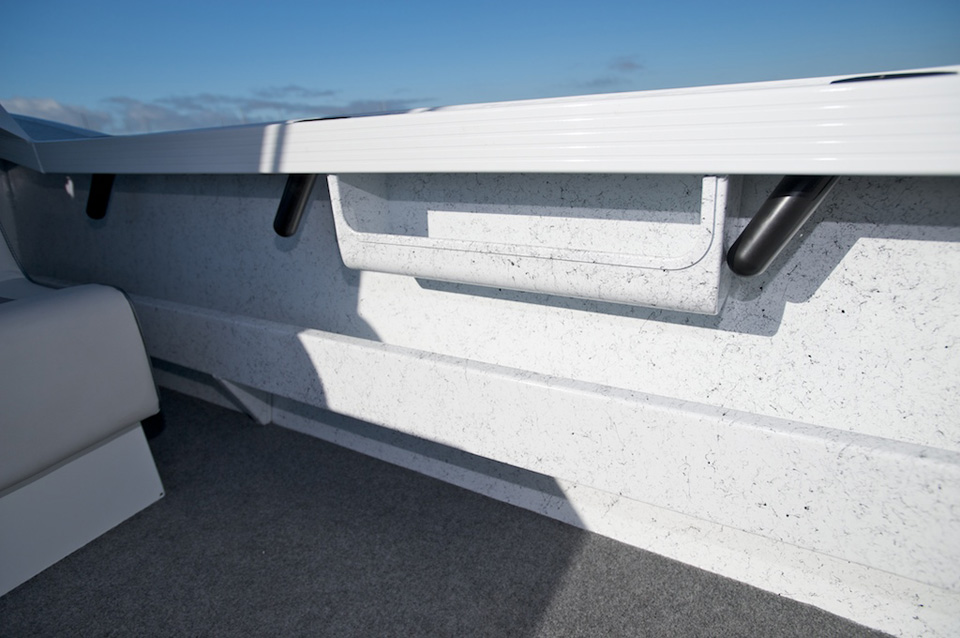

rod holders (alloy) x 6 – in wide side decks | • | • | • | • |
scuppers (for self draining deck) x 2 | • | • | • | • |

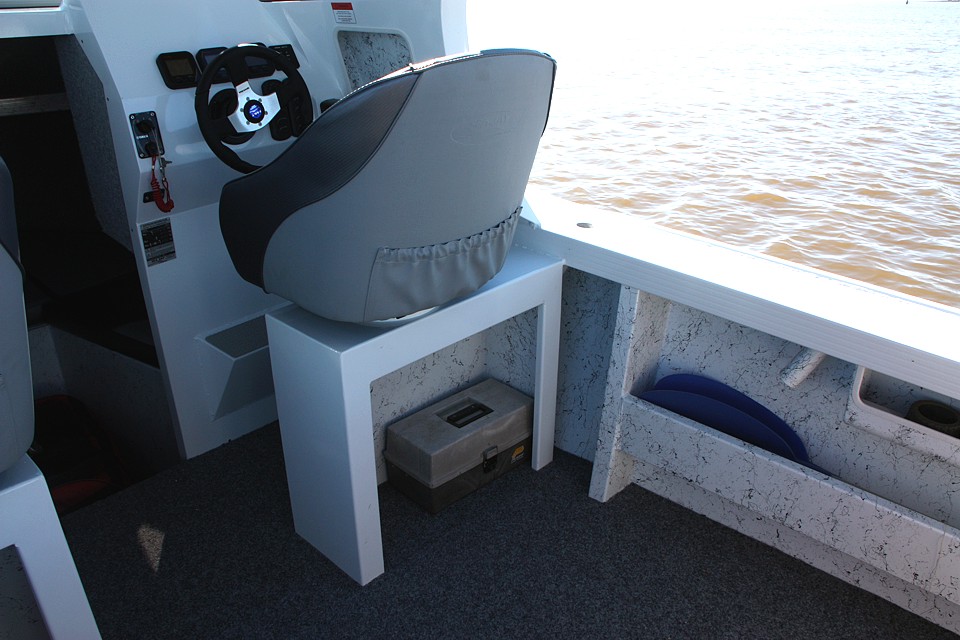

seat frame – 3mm alloy x 2 (with provision to fit an icebox) | • | • | • | • |
windscreen – contoured sports | • | • | • | • |
ELECTRICAL | ||||
accessory pre rig loom – to suit dual battery | • | • | • | • |
battery box x 2 | • | • | • | • |
battery master / isolation switch BEP x 2 | • | • | • | • |
bilge pump | • | • | • | • |
light (LED) – cabin x 1 | • | • | • | • |
light (LED) – underside of hardtop x 1 | • | • | • | • |
light (LED) – anchor folding | • | • | • | • |
light (LED) – navigation | • | • | • | • |
light (LED) – stern | • | • | • | • |
power socket 12v | • | • | • | • |
switch panel BEP (6 gang) x 1 | • | • | • | • |
switch panel BEP (6 gang) x 2 | • | • | • | • |
FUEL TANK | ||||
under floor / deck fill | 300ltr | 360ltr | 400ltr | 500ltr |
fuel hose cover | • | • | • | • |
fuel sender | • | • | • | • |
separate fuel cell (tank within it’s own cavity) | • | • | • | • |
RAILS | |||||

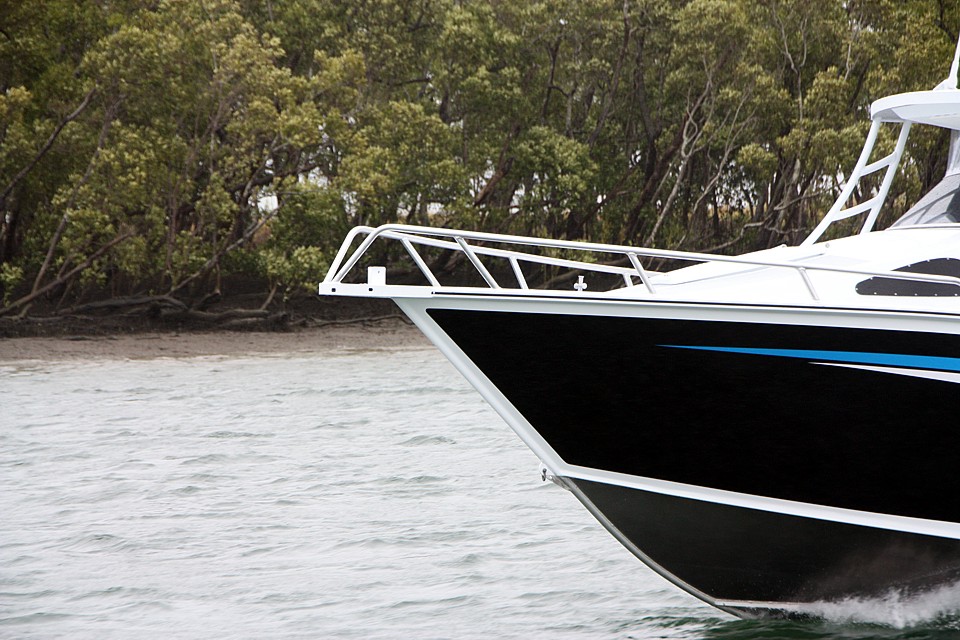

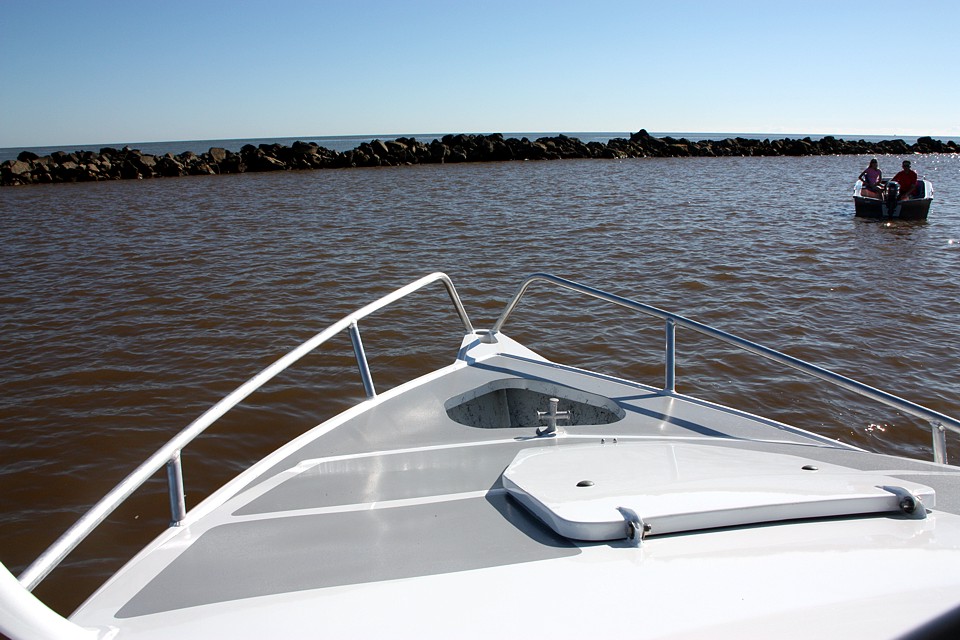

bow – low profile (32mm) | • | • | • | • | • |
grab rail – around hard top (25mm) | – | • | • | • | • |
grab rail – passenger (25mm) | • | • | • | • | • |
transom (32mm) | • | • | • | • | • |
SEATS | ||||

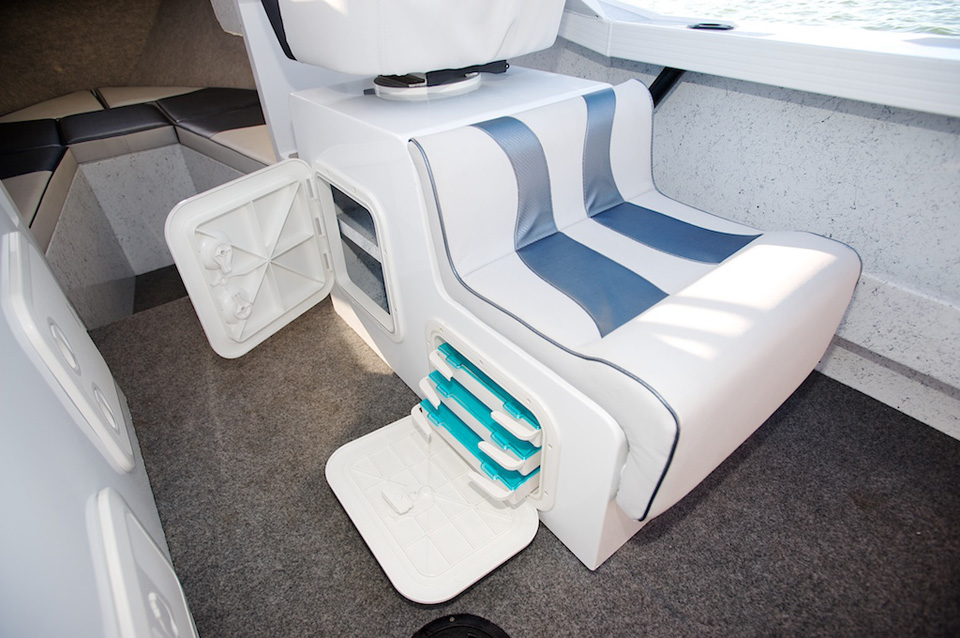

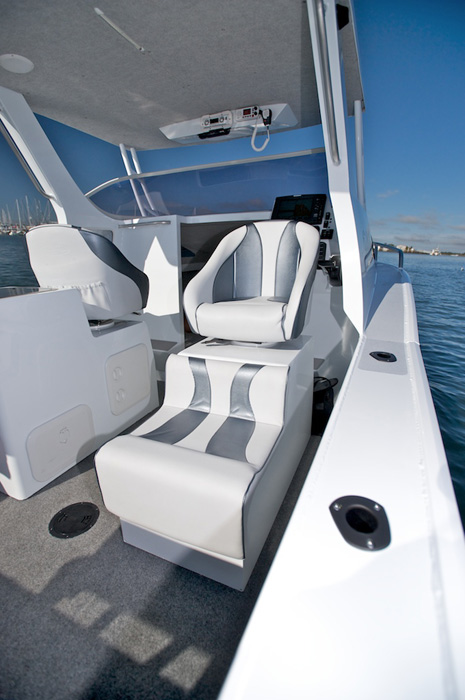

offshore bucket seats x 2 | • | • | • | • |
seat slide — driver & passenger side | • | • | • | • |
STEERING | ||||
hydraulic steering – Baystar | – | – | – | – |
hydraulic steering – Sea Star | • | • | • | • |

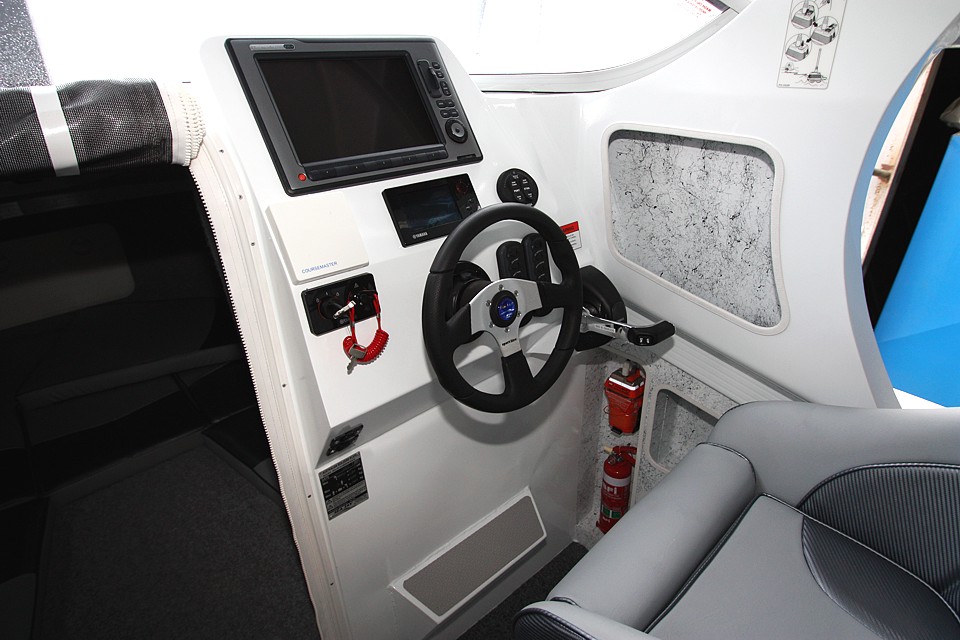

sports steering wheel | • | • | • | • |
TRANSOM | ||||
25″ | – | – | – | – |
filled in – 25″ | • | • | • | • |
25″ twin engine | opt | opt | opt | opt |
FACTORY OPTIONS | ||||
anchor winch – electric | opt | opt | opt | opt |
anchor winch rope kit | opt | opt | opt | opt |
bunk centre filled in | opt | opt | opt | opt |
cabin door cover – vinyl with fly screen | opt | opt | opt | opt |
checkerplate floor | opt | opt | opt | opt |
coloured sides – paint (2 pac commercial marine grade) | opt | opt | opt | opt |
deck wash 19ltr / min – fresh water (includes 75ltr water tank) | opt | opt | opt | opt |
deck wash 19ltr / min – fresh water (includes 125ltr water tank) | – | – | opt | opt |
deck wash 19ltr / min – (salt water ) | opt | opt | opt | opt |
front clears | opt | opt | opt | opt |
rear bimini – off rear of hard top | opt | opt | opt | opt |
self flooding kill tank (may lose fuel capacity) | opt | opt | opt | opt |

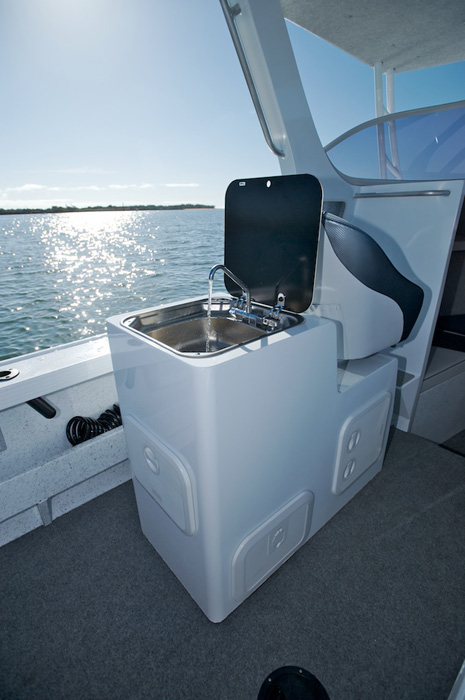

seat box DLX – with sink / storage / moulded hatch | opt | opt | opt | opt |
seat box DLX – with rear seat / storage / moulded hatch | opt | opt | opt | opt |
spot light – LED | opt | opt | opt | opt |
tackle tray | opt | opt | opt | opt |

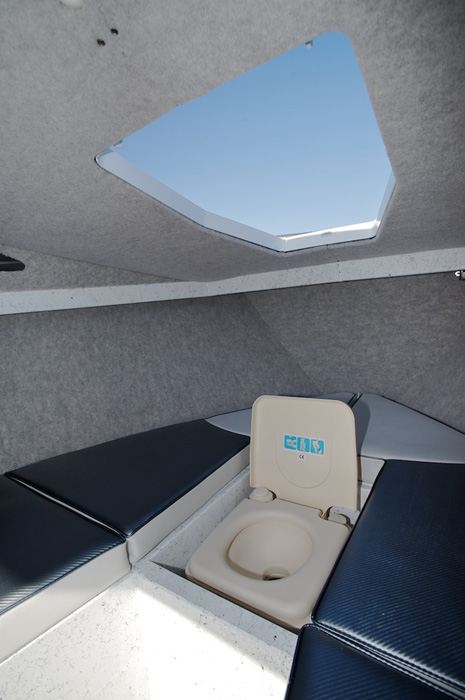

toilet (chemical) – under cabin bunk | opt | opt | opt | opt |
trim tabs – electric | opt | opt | opt | opt |
ice box – 110ltr fiberglass with split lid (fits in seat frame) | opt | opt | opt | opt |
ice box upholstery – to suit 110ltr fiberglass with split lid | opt | opt | opt | opt |
